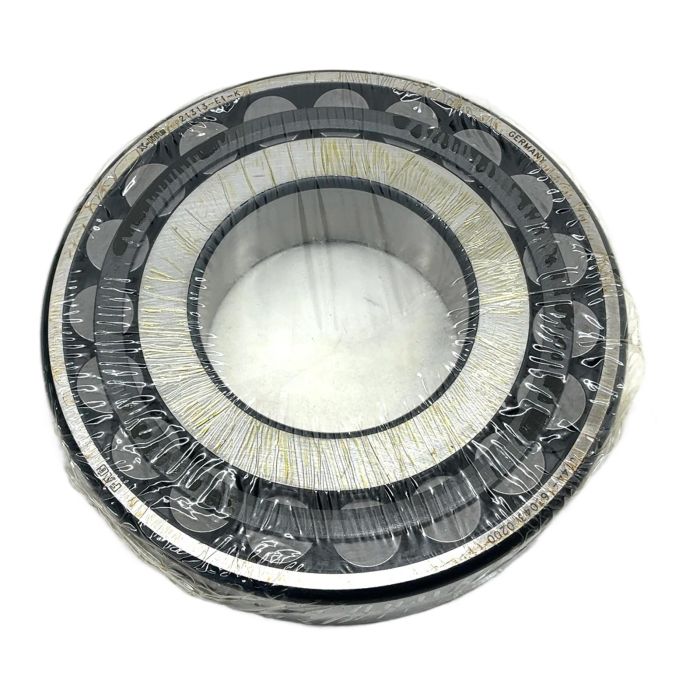

FAG 21313-E1-K Spherical Roller Bearing

Description

The FAG 21313-E1-K is a robust spherical roller bearing designed to accommodate heavy radial and axial loads in both directions. As part of the Schaeffler Group's premium FAG brand, this bearing is manufactured to the highest standards in Germany, ensuring exceptional performance and reliability in demanding industrial environments such as mining, construction, and manufacturing.

Specifications

• Brand: FAG
• Model: 21313-E1-K
• Type: Spherical Roller Bearing
• Bore Diameter (d): 65 mm
• Outer Diameter (D): 140 mm
• Width (B): 33 mm
• Bore Type: Tapered 1:12 (K)
• Cage Material: Sheet Steel
• Internal Design: E1 - Increased load carrying capacity

Label Info

• Manufacturer: FAG
• Part Number: 21313-E1-K
• EAN: 4026677959874

Application

This bearing is ideal for applications involving high loads and potential shaft misalignment, including gearboxes, continuous casting machines, conveyors, and vibratory machinery.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this new surplus FAG bearing, you are contributing to a circular economy and avoiding the emission of approximately 6.02 kg of CO2, which would have been generated during the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'E1' and 'K' suffixes in the 21313-E1-K designation?

The 'E1' suffix denotes an optimized internal design by FAG, providing a higher dynamic load rating and longer service life compared to older designs. The 'K' suffix indicates that the bearing has a tapered bore with a taper of 1:12, which allows it to be mounted on a cylindrical or tapered shaft using an adapter or withdrawal sleeve.

The appropriate lubrication depends heavily on the operating conditions, such as speed, load, and temperature. Generally, a high-quality lithium-based grease with an EP (Extreme Pressure) additive is suitable for a wide range of applications. For high-speed or high-temperature environments, oil lubrication might be necessary. Always consult the machine manufacturer's manual or a lubrication expert for specific recommendations.

Mounting a tapered bore bearing typically involves an adapter sleeve (e.g., H series) or a withdrawal sleeve (e.g., AH series). The bearing is driven up the sleeve until the required reduction in radial internal clearance is achieved. This ensures the correct interference fit. Using a hydraulic nut and feeler gauges to measure the clearance reduction is the most accurate method. Improper mounting can significantly reduce bearing life.
