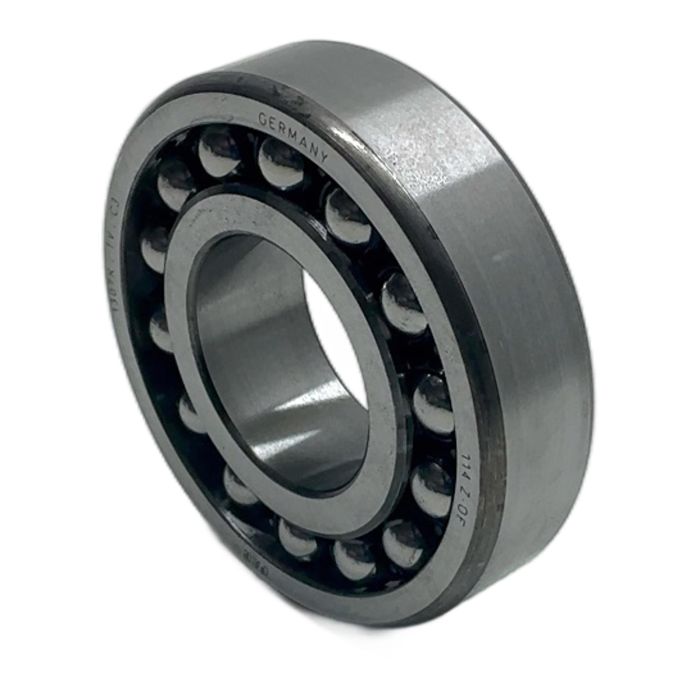

FAG 1307K.TV.C3 Self-Aligning Ball Bearing

Description

This is a high-performance self-aligning ball bearing, model 1307K.TV.C3, manufactured by FAG in Germany. It is designed to accommodate misalignment between the shaft and housing. This bearing is particularly suited for applications where shaft deflection or mounting errors are expected. This item is new old stock, in excellent condition, and comes in its original, though worn, packaging.

Specifications

• Manufacturer: FAG
• Type Number: 1307K.TV.C3
• Inner Diameter (bore): 35 mm
• Outer Diameter: 80 mm
• Width: 21 mm
• Bore Type: Tapered (1:12)
• Cage Material: Glass fibre reinforced polyamide 66
• Internal Clearance: C3 (greater than normal)
• Number of Rows: 2

Label Info

• FAG
• 1307K.TV.C3
• GERMANY

Application

Ideal for use in industrial machinery such as agricultural equipment, fans and blowers, conveyor systems, and textile machinery where static and dynamic misalignments occur.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component over a new one saves approximately 0.9 kg of CO2, which is comparable to driving a car for 4.5 kilometers.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' indicates that the bearing has a tapered bore with a taper of 1:12. This design allows for mounting on a cylindrical or tapered shaft using an adapter sleeve (e.g., H series) or withdrawal sleeve, providing a secure and precise fit.

The C3 clearance means the radial internal play is greater than standard. This is crucial for applications that involve high speeds, temperature variations between the inner and outer rings, or where a tight press fit is required during installation. It prevents the bearing from seizing due to thermal expansion.

Due to their ability to accommodate misalignment, these bearings are widely used in machinery where shaft deflection is expected. Common applications include agricultural equipment, ventilation fans, paper machines, conveyor systems, and textile machinery.
