Eurotherm 590P Series 180A DC Drive

Description

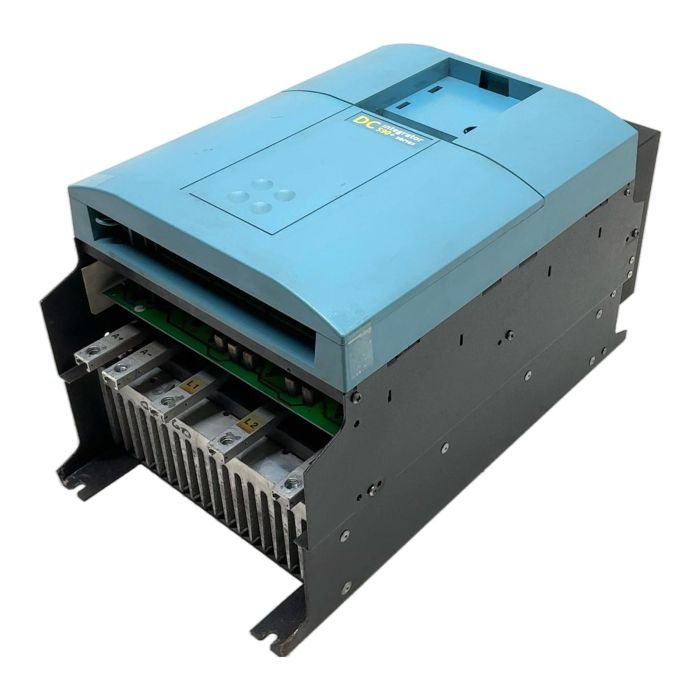

This is a Eurotherm 590P series DC motor drive, model 590P/0180/500/0010/FR/AN/0/230/0. It is a high-performance, 4-quadrant regenerative drive designed for complex and demanding motor control applications. This unit provides reliable and precise control over DC motors with a maximum armature current of 180A. The drive is built for industrial environments and is a part of a legacy series known for its durability.

Specifications

• Manufacturer: Eurotherm (Parker Hannifin)
• Series: 590P
• Max Armature Current: 180 Amps DC
• Max Armature Voltage: 600 Volts DC
• Supply Voltage: 220-500 Volts AC, 3-phase, 50/60Hz
• Control Type: 4-Quadrant Regenerative
• Firmware Version: 5V16
• Condition: Used, with damage to the removable front cover.

Label Info

• Model No: 590P/0180/500/0010/FR/AN/0/230/0
• Serial No: 110208707001042

Application

Ideal for applications requiring precise DC motor speed and torque control, such as extruders, winders, machine tools, and other industrial machinery where regenerative braking is beneficial.

Country of Origin

Made in the UK.

CO2 Impact

Choosing this pre-owned component saves an estimated 200 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of driving a car for approximately 1000 kilometers.

Availability

This unit is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the firmware version of this drive?

The label indicates firmware version FW: 5V16. It is crucial to check compatibility with your existing system or configuration software before installation.

This is a 4-quadrant regenerative drive, meaning it can control the motor's speed and torque in both forward and reverse directions, and it can return energy to the power supply during braking.

The 590P series is highly configurable. While this specific model number may indicate a factory setting, it should be verified and configured for the intended application, which could be analog tachometer, encoder, or armature voltage feedback.
