ERIKS PT-100 Industrial Temperature Sensor

Description

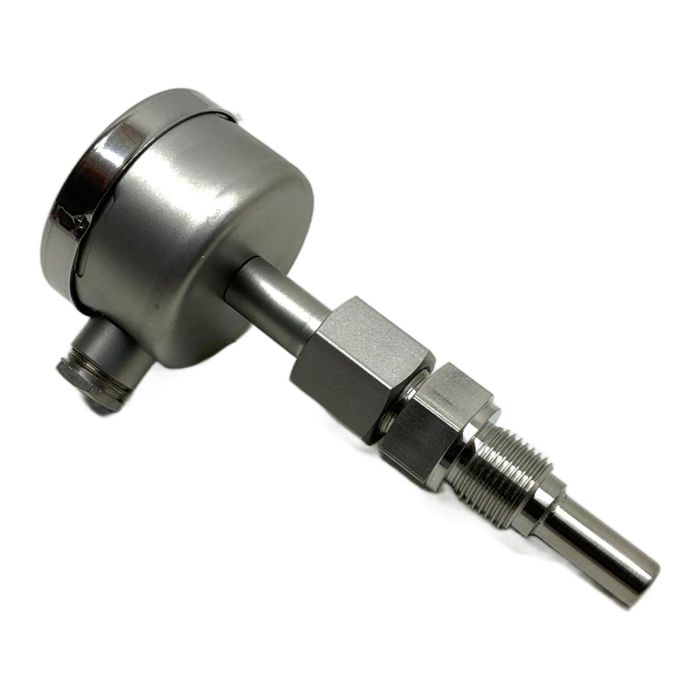

This is a robust and reliable PT-100 resistance temperature sensor from ERIKS, part number 072-51415 30. Designed for industrial applications, it features a durable stainless steel housing and probe, with a standard connection head for easy wiring. It conforms to both DIN 43760 and IEC 751 standards, making it a high-accuracy and interchangeable component for process control and monitoring systems.

Specifications

• Manufacturer: ERIKS
• Sensor Type: PT-100 Resistance Temperature Detector (RTD)
• Article Number: 072-51415 30
• Housing: Stainless steel connection head
• Process Connection: Threaded (size not specified)
• Standards Compliance: DIN 43760, IEC 751

Application

Ideal for temperature measurement in liquids and gases across a wide range of industries, including manufacturing, chemical processing, food and beverage, and energy. Suitable for integration with PLCs, temperature controllers, and data acquisition systems.

Country of Origin

Manufactured in the Netherlands.

CO2 Impact

Opting for this pre-owned sensor saves approximately 12.0 kg of CO2 compared to a new purchase, supporting sustainable industrial operations.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is a PT-100 sensor and is it compatible with my controller?
A PT-100 is a standard platinum resistance thermometer (RTD) with a resistance of 100 Ohms at 0 deg C. It is one of the most common sensor types and is compatible with virtually any PLC, temperature controller, or data logger that accepts RTD inputs. Always check your device's manual to confirm PT-100 compatibility.

How is this sensor typically wired?
The internal terminal block will determine the wiring configuration. A 2-wire setup is simplest but least accurate. A 3-wire setup compensates for lead wire resistance and is the most common industrial standard. A 4-wire setup offers the highest accuracy. The choice depends on your controller's input and required precision.

Does this sensor require calibration upon installation?
ERIKS PT-100 sensors are manufactured to strict standards like IEC 60751 and typically do not require initial calibration for most applications. However, for high-precision processes or to meet quality system requirements, periodic calibration verification against a certified reference is recommended.
