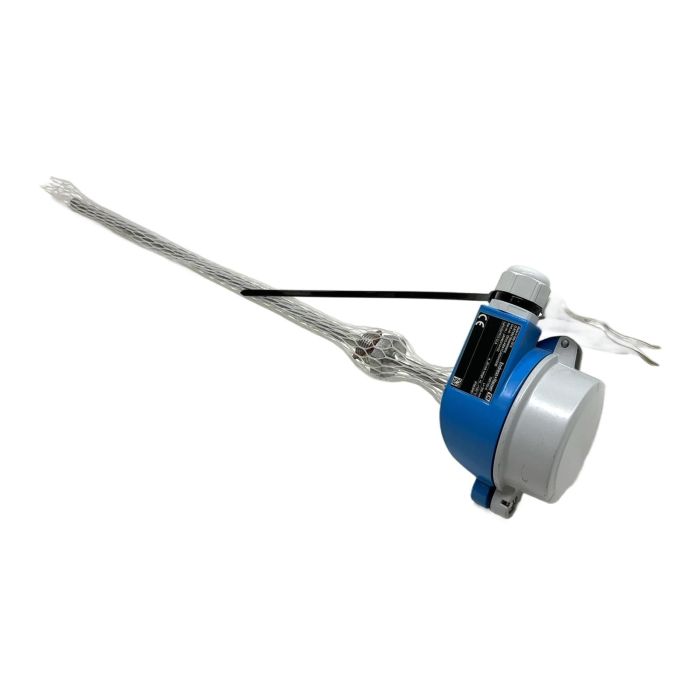

Endress+Hauser TMT182-A Temperature Transmitter Assembly

Description

This is a complete temperature measurement solution from Endress+Hauser, model TMT182-A combined with an iTHERM TR10 RTD assembly. It provides a reliable and accurate temperature reading translated to a standard 4-20 mA analog signal, suitable for integration into various process control systems. The unit is pre-configured and ready for installation in demanding industrial environments.

Specifications

• Manufacturer: Endress+Hauser
• Transmitter Model: TMT182-A
• Thermometer Order Code: TR10-ABA1CASXH200B
• Sensor Type: 1x Pt100 RTD, 3-wire
• Sensor Accuracy: Class A
• Probe Immersion Length (L): 350 mm
• Output Signal: 4...20 mA
• Configured Measurement Range: 0 to +150 deg C
• Protection Class: IP66/IP67

Label Info

• Serial Number: JA04E414152
• Year of Manufacture: 2014

Application

Ideal for temperature monitoring in tanks, pipes, and other industrial vessels across various industries, including chemical, food and beverage, and water/wastewater treatment.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this pre-owned unit over a new one saves approximately 12.0 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the accuracy class of the Pt100 sensor in this unit?
Answer:

The sensor is a Class A Pt100 RTD, as specified on the device label (CI.A), offering high precision for industrial applications.

Yes, the TMT182 transmitter is PC-programmable. You would need the appropriate Endress+Hauser configuration software (like ReadWin 2000) and a compatible programming interface to adjust the range.

While the exact thread size is not listed on the main label, the TR10 series typically uses standard process connections like adjustable compression fittings (e.g., G1/2 inch or NPT). The fitting material is usually stainless steel 316L for good chemical resistance.
