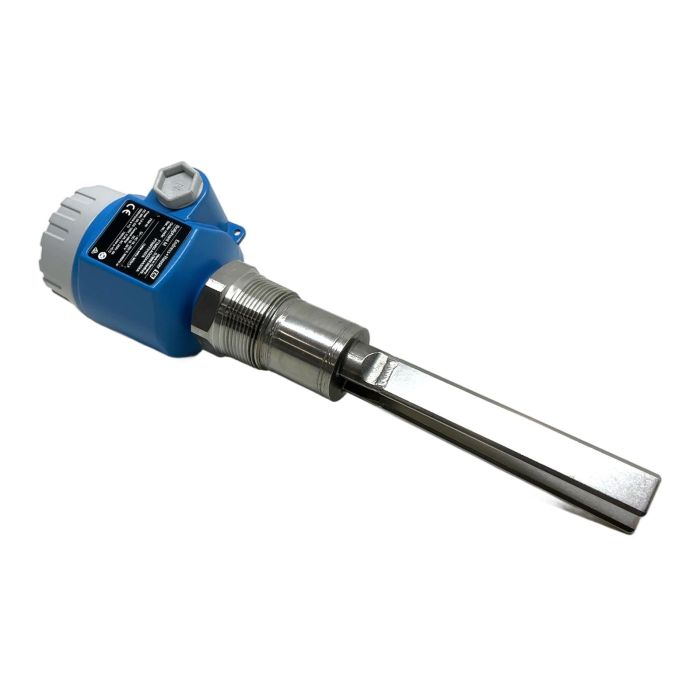

Endress+Hauser Soliphant M FTM50 Level Switch

Description

The Endress+Hauser Soliphant M FTM50 is a high-reliability vibronic point level switch designed for use in silos containing fine-grained or coarse-grained bulk solids. Its robust design ensures maintenance-free operation, and it is unaffected by build-up or external vibration. This model, with the order code FTM50-AGG2A4A32AA, provides a universal solution for overfill prevention and demand detection across various industries.

Specifications

• Manufacturer: Endress+Hauser
• Model: Soliphant M FTM50
• Order Code: FTM50-AGG2A4A32AA
• Power Supply: 19 to 253V AC (50/60Hz) or 19 to 55V DC
• Contact Rating: 6A at 253V AC / 6A at 30V DC
• Process Temperature: -50 deg C to +150 deg C
• Ambient Temperature: -50 deg C to +70 deg C
• Maximum Process Pressure: 25 bar (362.5 psi)
• Enclosure Protection: IP66/IP67, Type 4X
• Cable Entry: M20x1.5

Label Info

• Serial Number: P704FF0107A
• Date of Manufacture: 2019-07

Application

Ideal for point level detection in silos with bulk solids such as grain, plastic granules, cement, or flour. Its versatility makes it suitable for applications in the food, chemical, and building materials industries.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid the production of a new one, saving approximately 29.0 kg of CO2. This is comparable to the emissions from driving 145 kilometers in a standard passenger car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The standard Endress+Hauser FTM50 is designed for bulk solids with a minimum density of 10 g/l (0.62 lb/ft^3), making it suitable for very light powders and granules.

No, this specific model FTM50-AGG2A4A32AA is for non-hazardous areas. Models with ATEX, FM, or CSA approvals have different order codes and specific markings on the nameplate.

This basic relay output version typically does not have an adjustable switching delay. It features a fixed delay of approximately 1 second when the fork is covered and 1.5 seconds when it becomes uncovered to prevent false switching from material turbulence.
