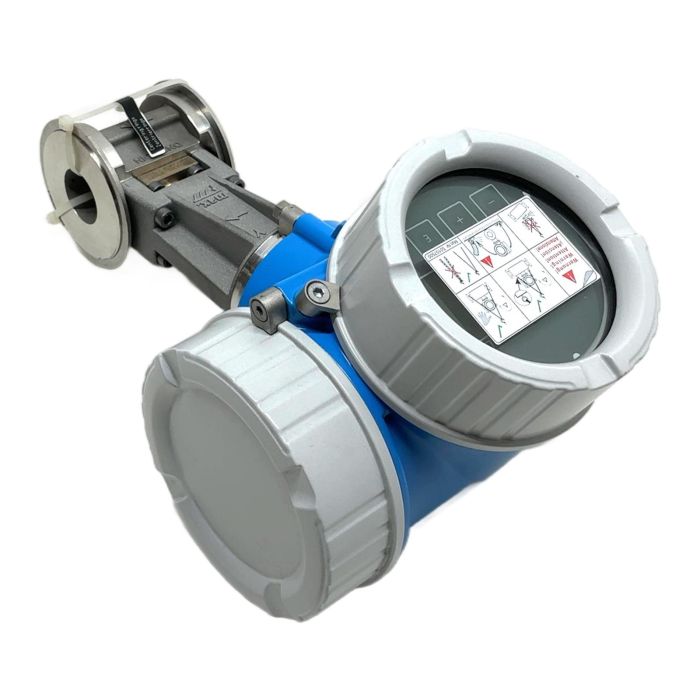

Endress+Hauser Prowirl 200 Vortex Flowmeter

Description

The Endress+Hauser Prowirl 200, with order code 7D2C25-2DW1/0, is a universal vortex flowmeter for industrial applications. It is engineered for high-precision measurement of the volume flow of liquids, gases, and steam. Its robust design and 2-wire technology make it a cost-effective and reliable solution for process control and monitoring. This specific model is configured for a DN25 line size with a PN40 pressure rating.

Specifications

• Manufacturer: Endress+Hauser
• Model: Prowirl 200
• Order Code: 7D2C25-2DW1/0
• Serial Number: R1069D19000
• Size: DN25 (1 inch)
• Pressure Rating: DIN/EN PN40, PS 40 bar
• Max Flow Rate (Gas): 161.5 m3/h
• Power Supply: 13 to 35V DC (2-wire)
• Output Signal: 4-20mA HART, Pulse/Frequency/Switch output
• Process Temperature (Tm): -40 to +260 deg C
• Ambient Temperature (Ta): -40 to +80 deg C
• Protection Class: IP66/67, Type 4X
• Material (Wetted Parts): 1.4404/316/316L, 1.4408/CF3M

Application

This flowmeter is ideal for a wide range of industries including chemical, oil and gas, power, and food and beverage. It is commonly used for steam management, utility monitoring, and process control where reliability and long-term stability are critical.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned unit prevents the emission of approximately 88 kg of CO2, which is comparable to the savings from driving a car for 440 km. This choice supports a more sustainable industrial ecosystem.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The K-factor is a unique calibration value for each flowmeter sensor. It can be found in the device's electronic nameplate via the display or a HART communicator. For this unit, with serial number R1069D19000, you can also retrieve the original calibration certificate from the Endress+Hauser website.

Yes, the Prowirl 200 is designed for measuring steam. With a process temperature rating up to 260 deg C and a PN40 pressure rating, it is well-suited for many saturated steam applications. Ensure your process conditions are within these limits and proper installation practices, like condensate traps, are followed.

This specific model, 7D2C25-2DW1/0, is the standard volume flow version. For integrated mass flow calculation with pressure and temperature compensation, you would need a Prowirl 200 model with the optional integrated p/T sensor, which would be reflected in a different extended order code. This unit provides volume flow, which can be converted to mass flow externally if pressure and temperature are measured separately.
