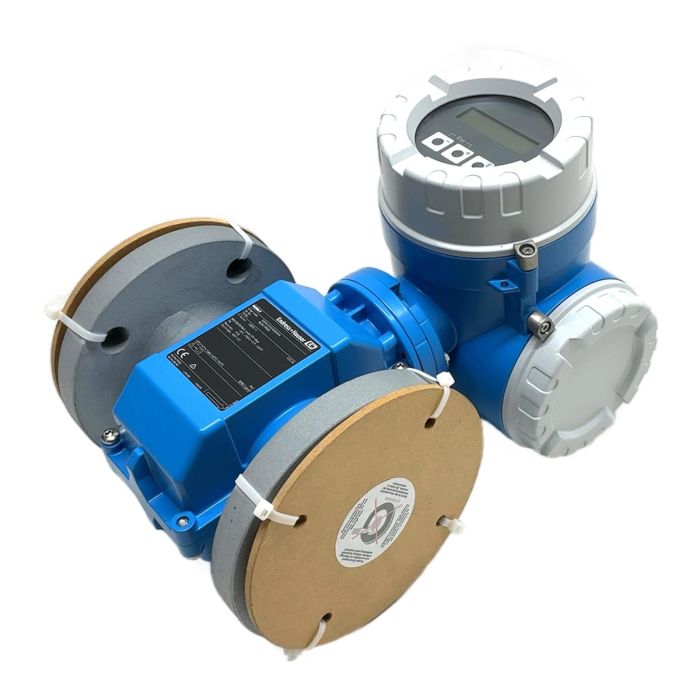

Endress+Hauser Promag 50P Electromagnetic Flowmeter

Description

The Endress+Hauser Promag 50P (Order Code: 50P50-EA1A1AA0AAAA) is a high-performance electromagnetic flowmeter designed for demanding process applications. It provides accurate and repeatable measurement of electrically conductive liquids. This compact unit integrates the Promag P sensor with the Promag 50 transmitter, featuring a user-friendly interface and robust communication options including HART protocol.

Specifications

• Manufacturer: Endress+Hauser
• Model: Promag 50P
• Order Code: 50P50-EA1A1AA0AAAA
• Nominal Diameter: DN50
• Process Connection: Flange DIN/EN PN40
• Liner Material: PTFE
• Electrode Material: HAST-C22
• Power Supply: 85-260V AC, 50-60Hz, 15VA/W
• Output: 4-20mA (HART), Frequency Output
• IP Rating: IP67 / NEMA 4X
• Medium Temperature Range: -10 to +130 deg C
• Ambient Temperature Range: -20 to +60 deg C

Label Info

• Ser.No.: N61D4119000
• K-factor: 0.8815 / 4
• Calibration: 0.5% CAL

Application

Ideal for use in the chemical, water/wastewater, and food and beverage industries. The combination of a PTFE liner and HAST-C22 electrodes makes it exceptionally well-suited for measuring corrosive acids, alkalis, and other aggressive liquids.

Country of Origin

Manufactured in Germany.

CO2 Impact

Opting for this pre-owned unit over a new one saves approximately 76 kg of CO2, which is comparable to the emissions of a 380 km car journey.

Availability

This is an obsolete item, available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

HAST-C22 (Hastelloy C-22) is a highly corrosion-resistant nickel-chromium-molybdenum alloy. Its presence means this Promag 50P is suitable for measuring extremely corrosive liquids, such as wet chlorine gas, hypochlorite, and various acids, where standard stainless steel electrodes would quickly fail.

Yes, the Promag 50 transmitter includes a HART communication protocol. This allows it to be configured, calibrated, and diagnosed using any HART-compatible host system, including Endress+Hauser's FieldCare software or a standard HART communicator handheld device.

The K-factor is a calibration constant specific to this individual sensor. It represents the number of pulses generated per unit of volume passing through the meter. This precise value is determined during factory calibration and is programmed into the transmitter to ensure the flowmeter's specified accuracy of 0.5%.
