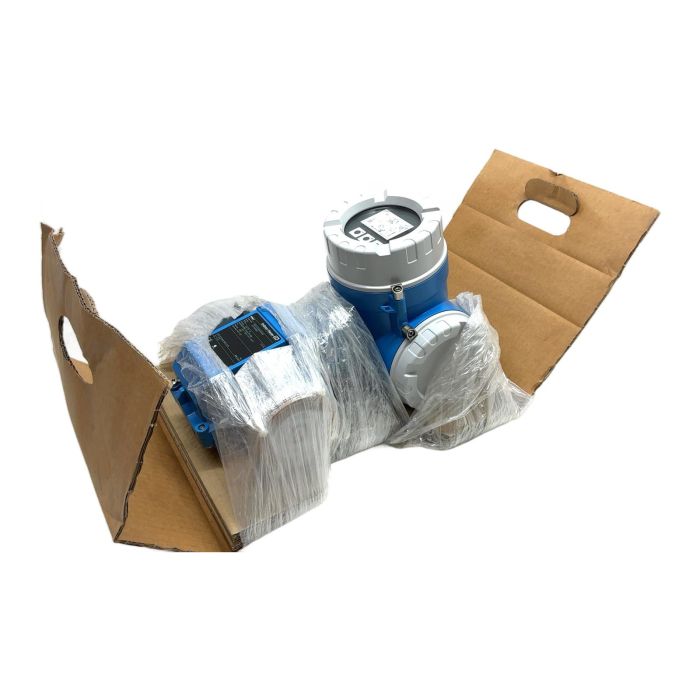

Endress+Hauser Promag 50P Electromagnetic Flowmeter

Description

The Endress+Hauser Promag 50P is a high-performance electromagnetic flowmeter designed for the precise measurement of conductive liquids in various process industries. This model combines a robust sensor with an advanced transmitter, featuring HART communication for easy integration into modern automation systems. Its durable construction ensures long-term reliability even in harsh environments.

Specifications

• Manufacturer: Endress+Hauser
• Model: Promag 50P
• Order Code: 50P15-EA1A1AA0AAAA
• Nominal Diameter: DN15 (1/2 inch)
• Pressure Rating: PN40 (40 bar)
• Power Supply: 85-260V AC, 50/60Hz
• Output Signals: 4-20mA HART, Frequency/Pulse Output
• Medium Temperature Range: -10 to +130 deg C
• Ambient Temperature Range: -20 to +60 deg C
• Ingress Protection: IP67 / NEMA 4X

Label Info

• Sensor Liner Material: PTFE
• Electrode Material: Hastelloy C22
• Serial Number: J41F3019000

Application

Ideal for applications in the chemical, food and beverage, water/wastewater, and pharmaceutical industries where accurate flow measurement of corrosive or aggressive liquids is critical.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 240 kg of CO2, which is the amount produced during the manufacturing of a new unit. This is comparable to the CO2 savings of driving a car for 1200 km.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Hastelloy C22 electrodes provide excellent resistance to a wide range of corrosive media, including oxidizing and reducing acids, chlorides, and other aggressive chemicals. This makes the flowmeter suitable for demanding applications in the chemical and process industries where standard stainless steel electrodes would fail.

Yes, absolutely. The built-in 4-20mA HART output allows for digital communication on top of the analog signal. This enables remote configuration, diagnostics, and monitoring of process variables, making it easy to integrate into modern DCS or PLC systems that support the HART protocol.

DN15 refers to the nominal pipe diameter, which is 15 millimeters (approximately 1/2 inch). PN40 indicates the pressure rating, meaning the meter is designed to operate safely at pressures up to 40 bar. It should be installed in a corresponding pipeline with matching flanges and pressure ratings.
