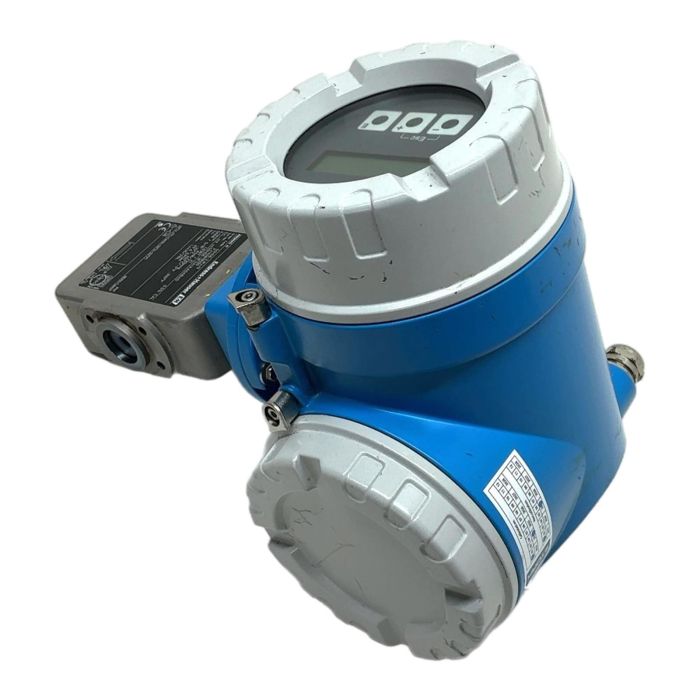

Endress+Hauser Promag 50H Flow Meter

Description

The Endress+Hauser Promag 50H is a high-precision electromagnetic flow meter designed for demanding hygienic applications. This device provides accurate and repeatable measurement of conductive liquids. It combines the Promag H sensor with the Promag 50 transmitter, featuring a two-line backlit display and push-button operation. This unit is ideal for integration into process control systems via its HART communication protocol.

Specifications

• Manufacturer: Endress+Hauser
• Model: Promag 50H
• Order Code: 50H08-2JK4/0
• Nominal Diameter: DN8 / 5/16 inch
• Pressure Rating: PN16 / 230 psig
• Liner Material: PFA
• Electrode Material: 1.4435 / 316L
• Power Supply: 20-55V AC / 16-62V DC, 50-60Hz
• Output: 4-20mA with HART Protocol
• Protection Rating: IP67 / NEMA Type 4X

Label Info

• Ser. No.: F4140819000
• Ext. ord. cd.: 50H08-3F0A1AA0ABAD
• Medium Temperature: -20 to 150 deg C
• Ambient Temperature: -20 to 60 deg C

Application

This flow meter is perfectly suited for applications in the food and beverage, pharmaceutical, and water treatment industries where sanitary conditions and precise flow measurement are critical.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 85 kg of CO2 emissions that would be generated by manufacturing a new one.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, this unit uses the 4-20mA signal with HART protocol, which is a widely supported industrial communication standard, ensuring compatibility with most modern control systems.

The 'H' signifies that this model is part of the Hygienic line, designed with materials and construction standards (like PFA liner and EHEDG certification) suitable for sanitary applications in industries like food and pharma.

No. As an electromagnetic flow meter, it requires the fluid being measured to have a minimum level of electrical conductivity. It is not suitable for non-conductive liquids like oils or deionized water.
