Endress+Hauser iTHERM TC10 Thermocouple

Description

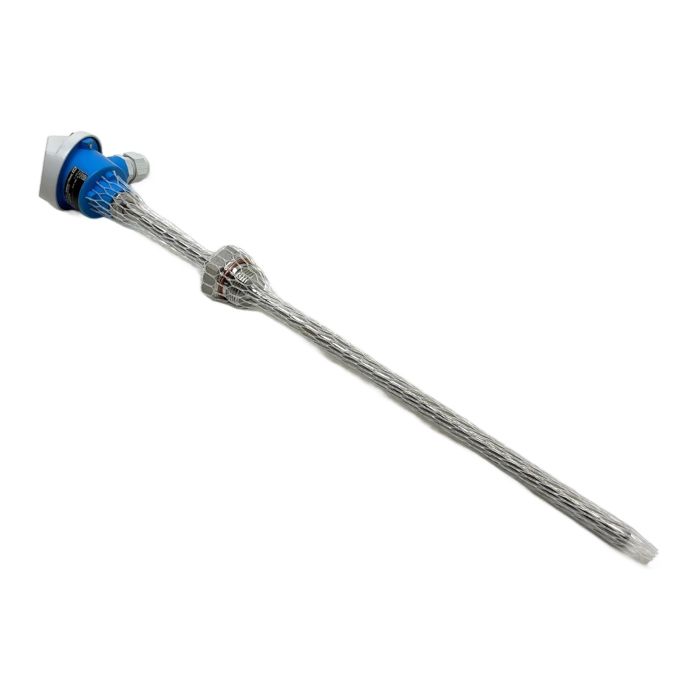

This is a modular thermocouple, model iTHERM TC10, from Endress+Hauser. It is designed for a wide range of applications in industrial process engineering. This specific model features a Type J sensor element and an insertion length of 330 mm, making it suitable for precise temperature measurements in various media. The robust aluminum housing ensures durability with an IP66/67 rating.

Specifications

• Manufacturer: Endress+Hauser
• Product Series: iTHERM TC10
• Sensor Type: 1x Thermocouple Type J (Fe-CuNi)
• Insertion Length (L): 330 mm
• Sensor Range: -40 to 750 degC
• Process Connection: Thread G1/2
• Head/Housing: Aluminum TA30A
• Protection Class: IP66/67
• Head Insert: Ceramic terminal block

Label Info

• Order Code: TC10-AAF3BJSXCE200
• Serial Number: PA043A14168
• Year of Production: 2019

Application

Ideal for temperature measurement in pipes and tanks across various industries such as chemical, power & energy, and primaries & metal. Suitable for non-hazardous area applications.

Country of Origin

Made in Italy.

CO2 Impact

Opting for a reconditioned part like this thermocouple saves approximately 20 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over a full year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A Type J thermocouple (Iron-Constantan) is suitable for a range up to about 750 degC and is often used in reducing atmospheres. A Type K (Chromel-Alumel) has a wider range (up to about 1250 degC) and is more common for general-purpose high-temperature applications. The choice depends on the specific process environment and required temperature range.

The insertion length of this specific mineral insulated (MI) cable thermocouple is fixed at 330 mm and cannot be altered. For different lengths, a new sensor with the required dimensions must be ordered.

No, the order code 'X' in the 'Head insert' position (TC10-...X...) indicates that this model is supplied with a standard ceramic terminal block for direct wire connection. It does not include a 4-20mA or HART transmitter in the head. A head-mounted transmitter could be installed separately if required.
