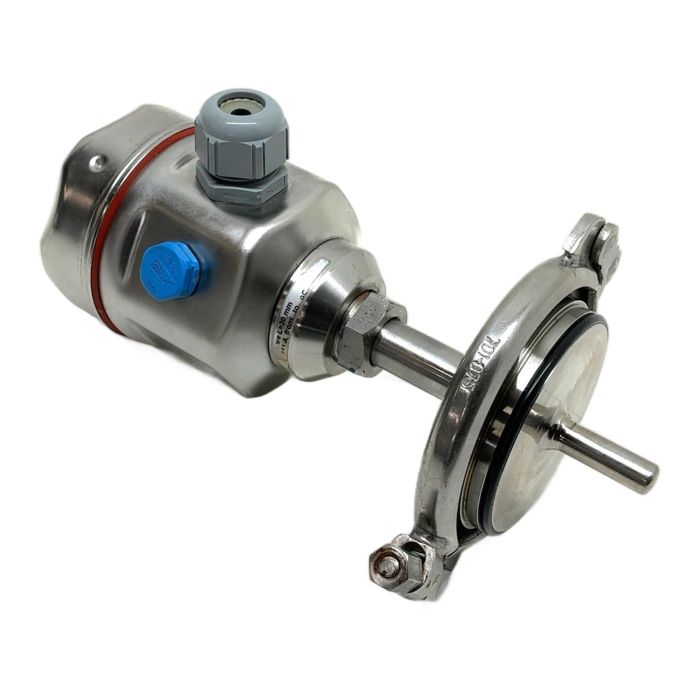

Anderson-Negele L3 Conductive Level Switch

Description

The Anderson-Negele L3 is a high-quality conductive level switch designed for point level detection in hygienic applications. Its robust stainless steel construction and Tri-Clamp connection make it ideal for the food, beverage, and pharmaceutical industries. This model features a probe length of 30 mm for compact installations, providing reliable and accurate liquid level monitoring.

Specifications

• Manufacturer: Anderson-Negele
• Model: L3
• Function: Conductive Level Switch
• Probe Length (L): 30 mm
• Process Connection: Tri-Clamp
• Housing Material: Stainless Steel
• Protection Class: IP69K

Label Info

• Partially visible label with 'L=30 mm'

Application

This sensor is perfect for overflow protection, dry run protection of pumps, and level control in tanks and pipelines within sanitary processes. It is suitable for use with a wide range of conductive liquids, such as milk, beer, water, and cleaning solutions.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned level switch prevents the emission of approximately 32 kg of CO2, which would be generated during the production of a new unit. This saving is comparable to the emissions from driving a standard car for 160 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the minimum conductivity required for the L3 to operate?

The Anderson-Negele L3 is factory-set to a sensitivity of 10 microSiemens/cm, but it can be adjusted to trigger on liquids with conductivity as low as 1 microSiemens/cm, making it suitable for a wide range of products including demineralized water.

Yes, absolutely. The L3 is designed specifically for hygienic applications. Its robust stainless steel construction and high-quality seals make it fully compatible with standard Clean-in-Place (CIP) and Sterilize-in-Place (SIP) procedures, withstanding high temperatures and cleaning agents.

The exact wiring depends on the specific order code, which is not fully visible on this unit. The L3 series is available with various outputs including DC PNP/NPN and AC/DC relay outputs. It is crucial to consult the datasheet or test the unit to confirm the output type before installation to prevent damage to the sensor or your control system.
