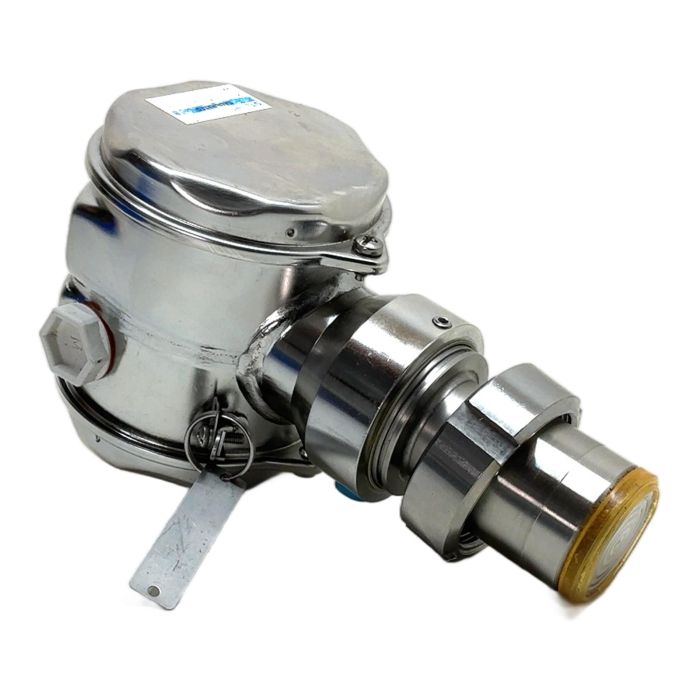

Endress+Hauser Deltapilot S Pressure Transmitter

Description

The Endress+Hauser Deltapilot S FMB70 is a hydrostatic level transmitter engineered for precision and reliability in process industries. It provides continuous measurement in liquids and is especially suited for hygienic applications thanks to its high-quality materials and design. This model features a 4-20mA output with HART communication for easy integration and configuration. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Output Signal: 4...20 mA with HART protocol
• Supply Voltage: 11.5 to 45 VDC
• Measuring Span: 40 to 400 mbar
• Maximum Working Pressure (MWP): 5.3 bar
• Protection Rating: IP66/IP68, NEMA 4X/6P
• Materials (Wetted Parts): Alloy C, 1.4435/316L Stainless Steel, SI

Label Info

• Manufacturer: Endress+Hauser
• Model: Deltapilot S
• Order Code: FMB70-ACR1F1200CAA
• Serial Number: AB01FD010AE

Application

Ideal for level and pressure measurement in tanks, vessels, and pipes within the food and beverage, pharmaceutical, and water/wastewater industries.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this refurbished unit over a new one prevents the emission of approximately 100 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What is the purpose of the HART protocol on this FMB70 transmitter?

HART (Highway Addressable Remote Transducer) protocol allows for two-way digital communication over the standard 4-20mA analog wiring. This enables remote configuration, diagnostics, and monitoring of the device without interrupting the analog signal, which simplifies maintenance and setup.

Yes, the Contite measuring cell used in the Deltapilot S is hermetically sealed and designed to be resistant to both condensation and vacuum. It can provide reliable measurements in applications involving negative gauge pressures.

Calibration of the zero and span can be performed locally using adjustment elements on the transmitter (if available) or remotely via a HART communicator or FDT/DTM-based engineering software like FieldCare. The procedure typically involves applying known low and high pressures and registering these values as the 4mA and 20mA points, respectively.
