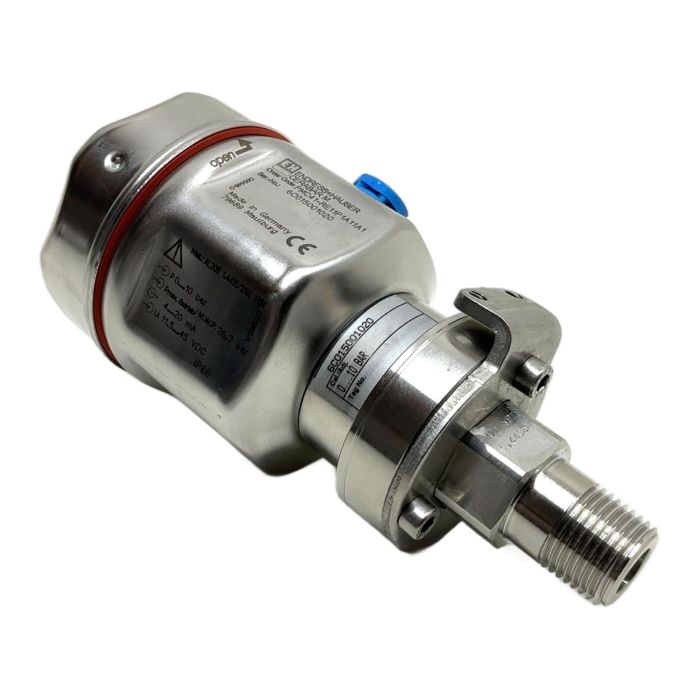

Endress+Hauser Cerabar M Pressure Transmitter

Description

The Endress+Hauser Cerabar M PMC41 is a high-quality pressure transmitter designed for reliable and accurate pressure measurement in industrial processes. It is suitable for monitoring gauge pressure in gases, vapors, and liquids. With its robust stainless steel construction and proven ceramic measuring cell technology, this transmitter offers excellent long-term stability and resistance to process conditions.

Specifications

• Manufacturer: Endress+Hauser
• Series: Cerabar M
• Type: PMC41-RE11P1A11A1
• Measuring Range: 0 to 10 bar
• Maximum Working Pressure: 26.7 bar
• Output Signal: 4-20 mA
• Power Supply: 11.5 to 45 VDC
• Housing Material: Aluminum (AL203) and Stainless Steel (1.4435/316L)
• IP Rating: IP66

Label Info

• Order Code: PMC41-RE11P1A11A1
• Serial Number: 6C015001020

Application

This pressure transmitter is ideal for a wide range of applications in industries such as chemical, food and beverage, water/wastewater, and power generation where accurate and stable pressure monitoring is critical for process control and safety.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned Cerabar M transmitter, you are contributing to a circular economy and avoiding the emission of approximately 60.0 kg of CO2 associated with the production of a new unit. This saving is comparable to driving a car for 300 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The PMC41 is primarily used for gauge pressure measurement in various process industries. Its ceramic cell is particularly well-suited for applications involving vacuum or abrasive media, offering high stability.

Configuration of the Cerabar M series is typically done via a HART communicator or a compatible configuration software like FieldCare. While the label indicates a calibrated range of 0-10 bar, the device may have a broader adjustable range specified in its full datasheet.

The Ceraphire ceramic cell offers excellent resistance to many corrosive and abrasive media. However, compatibility should always be checked against the specific chemicals in your process. The wetted parts are listed as 1.4435/316L stainless steel and FKM seals, which also determine its chemical compatibility.
