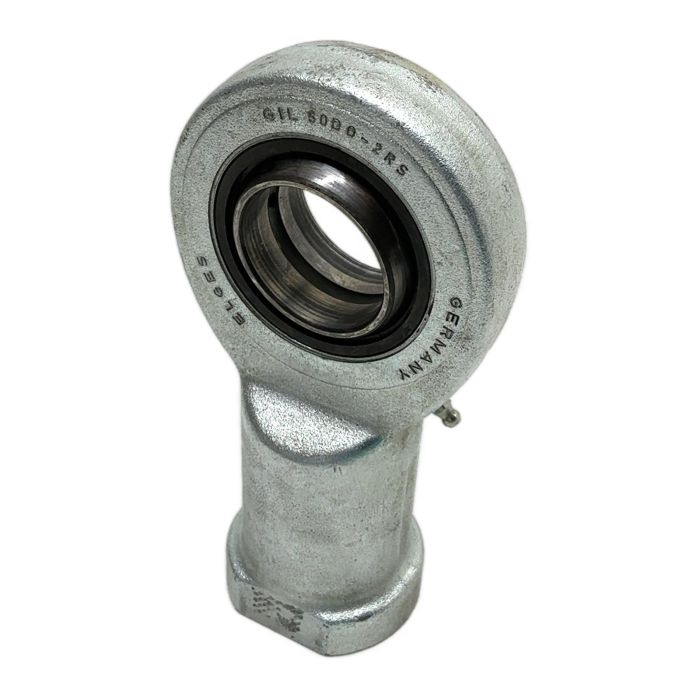

Elges GIL 60 DO-2RS Rod End Bearing

Description

This is a genuine Elges GIL 60 DO-2RS, a high-capacity, maintenance-free rod end bearing with a female thread. Manufactured in Germany by Schaeffler, this component is designed for superior performance and durability in demanding industrial environments. The integrated spherical bearing with Elgoglide sliding contact surface requires no lubrication, and the 2RS seals provide excellent protection against dust, dirt, and moisture, extending its operational life.

Specifications

• Manufacturer: Elges (Schaeffler Group)
• Model: GIL 60 DO-2RS
• Bore Diameter (d): 60 mm
• Thread Size: M48x3 (Female, Right-Hand)
• Overall Length (l2): 180 mm
• Head Width (b): 40 mm
• Sealing: 2RS (Contact seals on both sides)
• Dynamic Load Rating (C): 280 kN
• Static Load Rating (C0): 475 kN

Label Info

• Brand: ELGES
• Part Number: GIL 60DO-2RS
• Origin: GERMANY

Application

Ideal for use in hydraulic cylinders, linkages, construction equipment, agricultural machinery, and various automation systems where pivoting movements under heavy loads are required.

Country of Origin

This product is proudly made in Germany, ensuring the highest standards of quality and precision engineering.

CO2 Impact

By purchasing this pre-owned component, you are actively participating in the circular economy. The reuse of this 4.4 kg steel part avoids the emission of approximately 8.8 kg of CO2, which would have been generated during the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary difference is the thread type. The GIL series, like this GIL 60 DO-2RS, has an internal (female) thread on the shank. The GAL series has an external (male) thread.

Yes, the 'DO' designation indicates that it is a maintenance-free version. It features a special sliding layer (Elgoglide) between the inner and outer rings, eliminating the need for relubrication.

The '2RS' suffix signifies that the spherical bearing is equipped with contact seals on both sides. These seals are highly effective at preventing contaminants from entering the bearing and retaining the initial grease charge, ensuring a long service life.
