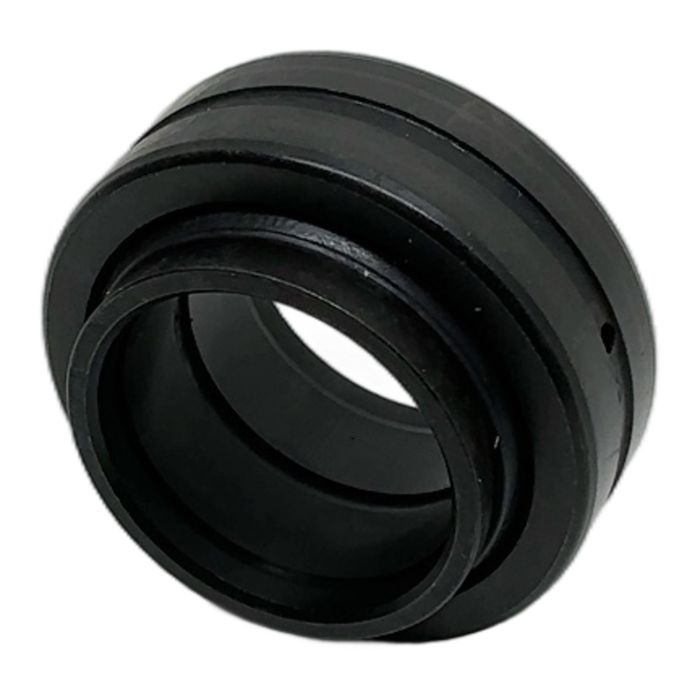

ELGES GE32-LO Radial Spherical Plain Bearing

Description

The ELGES GE32-LO is a high-quality radial spherical plain bearing designed for applications requiring accommodation of heavy radial loads and misalignment. As a product from a leading brand within the Schaeffler Group, this bearing ensures reliability and performance. It features a maintenance-free design with a steel on PTFE composite sliding surface, eliminating the need for relubrication and reducing operational costs. This component is ideal for use in demanding industrial environments such as construction machinery, hydraulic cylinders, and material handling equipment.

Specifications

• Manufacturer: ELGES (Schaeffler Group)
• Type: GE32-LO
• Bore Diameter (d): 32 mm
• Outside Diameter (D): 52 mm
• Outer Ring Width (B): 25 mm
• Inner Ring Width (C): 20 mm
• Sliding Combination: Steel / PTFE composite
• Maintenance: Maintenance-free

Label Info

• EAN: 4012802533538
• Quantity: 1

Application

Perfectly suited for pivot points, linkages, and applications with slow, oscillating movements where misalignment between the shaft and housing is a factor. Its robust, maintenance-free design makes it a fit-and-forget solution.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this refurbished bearing prevents the emission of approximately 0.46 kg of CO2 compared to manufacturing a new one. This saving is equivalent to driving an average car for 2.3 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'LO' suffix in GE32-LO signify?
The 'LO' suffix typically designates a specific series from ELGES/Schaeffler, indicating a maintenance-free design with a steel-on-PTFE composite sliding contact surface.

Can this bearing be lubricated?
No, the GE32-LO is a maintenance-free bearing. Its PTFE composite liner provides self-lubricating properties. Adding external grease can attract contaminants and is not necessary or recommended.

What is the main advantage of a spherical plain bearing over a standard ball bearing?
Its primary advantage is the ability to accommodate significant static and dynamic misalignment between the shaft and housing, which is impossible for most rigid ball or roller bearings.
