Ganter GN 50.4-ND-20 Retaining Magnet

Description

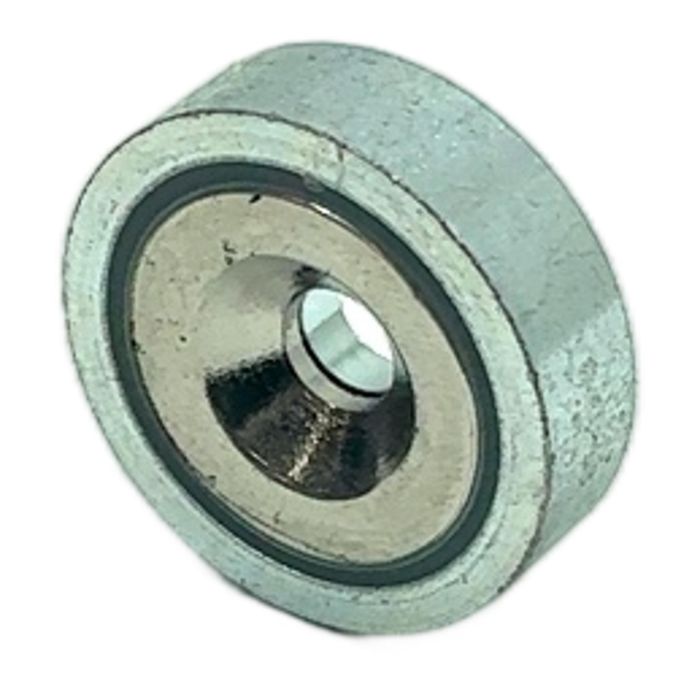

This is a Ganter GN 50.4 retaining magnet, often referred to as a pot magnet. It features a Neodymium (NdFeB) magnet embedded in a steel pot, which shields and concentrates the magnetic field onto the holding surface. This design provides a strong holding force in a compact size. The countersunk central bore is designed for easy and secure mounting with a standard screw.

Specifications

• Manufacturer: Ganter
• Type: GN 50.4-ND-20
• Outer Diameter: 20 mm
• Overall Height: 7 mm
• Bore Diameter (for screw): 4.5 mm
• Nominal Holding Force: 95 N
• Magnet Material: Neodymium, Iron, Boron (NdFeB)
• Housing Material: Steel
• Max. Operating Temperature: 80 deg C

Label Info

• Item: 09209952
• Description: GANTER SCHIJFMAGNEET STALEN BEHUIZING GN 50.4--ND--20

Application

Ideal for use in fixture construction, plant engineering, and general mechanical applications where non-permanent fixing of objects is required. Common uses include holding jigs, positioning parts, and door catches.

Country of Origin

Germany

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and helping to avoid 0.03 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What type of screw should be used for mounting the GN 50.4-ND-20 magnet?

This magnet is designed with a countersunk bore suitable for a standard countersunk head screw. For the 20mm diameter version, a size M4 screw is recommended for a secure, flush fit.

What is the maximum operating temperature for this Neodymium magnet?

The GN 50.4-ND version with Neodymium (NdFeB) magnet material has a maximum operating temperature of 80 deg C (176 deg F). Exceeding this temperature can lead to a permanent loss of magnetic force.

Does the steel housing affect the magnetic field?

Yes, the steel pot housing serves a specific purpose. It shields the magnetic field on the back and sides while concentrating it on the open holding surface. This significantly increases the holding force compared to an unshielded magnet of the same size.
