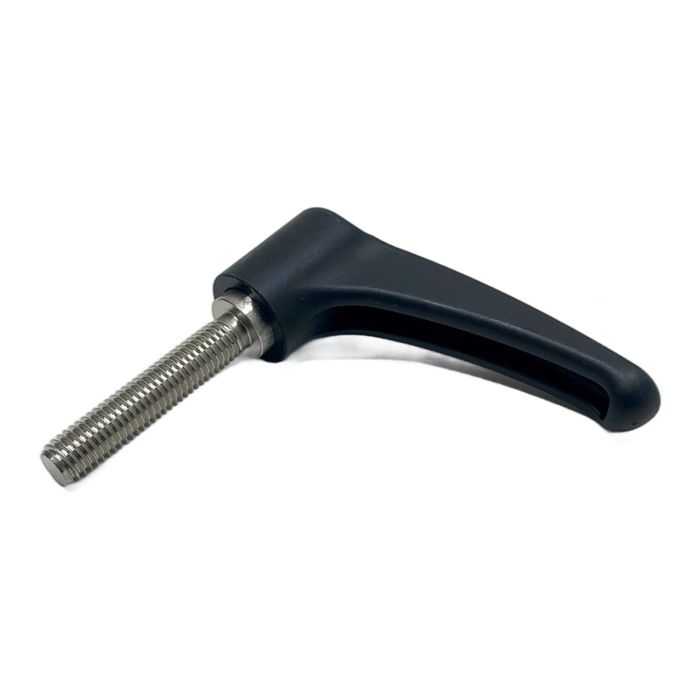

Elesa ERZ.78 Series Adjustable Clamping Lever

Description

The ERZ.78 SST-p-M10x50 is a high-performance adjustable clamping lever from Elesa, designed for industrial machinery and equipment. It features a push-button mechanism that disengages the handle for quick repositioning without altering the clamping position. This makes it exceptionally useful in applications with limited space. The combination of a glass-fibre reinforced technopolymer handle and a stainless steel threaded stud ensures durability and excellent corrosion resistance.

Specifications

• Manufacturer: Elesa
• Type: ERZ.78 SST-p-M10x50
• Handle Material: Technopolymer (Polyamide PA)
• Clamping Element: AISI 303 Stainless Steel Threaded Stud
• Thread Size: M10
• Thread Length (l): 50 mm
• Handle Length (L): 78 mm
• Operating Temperature: -30 deg C to +130 deg C

Label Info

• Model: ERZ.78 SST-p-M10x50
• Part Number: 239661
• EAN: 8055007033980

Application

Ideal for use in machine construction, jigs and fixtures, equipment manufacturing, and any application requiring repeatable clamping or quick adjustment. The stainless steel component makes it suitable for environments with moderate exposure to moisture or chemicals.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this component helps avoid the emission of approximately 1.5 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone 180 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The manufacturer's datasheet specifies a maximum tightening torque of 18 Nm for the M10 version of the ERZ.78 series. Exceeding this may damage the internal mechanism.

AISI 303 stainless steel offers good corrosion resistance in normal atmospheric conditions. However, for highly corrosive environments like direct saltwater exposure or food processing areas requiring specific certifications, a higher grade like AISI 316 might be recommended. Always check your application's specific requirements.

The push button disengages the internal serrations between the handle and the clamping insert. This allows you to lift and rotate the handle to the desired position without turning the stud. Releasing the button re-engages the serrations, allowing you to apply clamping force.
