Description

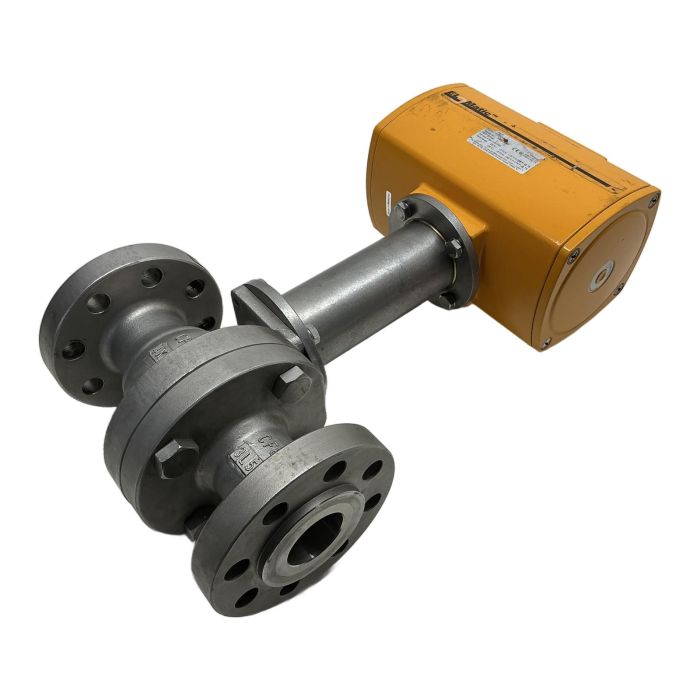

This is a complete, pre-owned actuated valve assembly, featuring a high-quality Emerson El-O-Matic F0350M pneumatic actuator mounted on a JC Valves FIG 560 stainless steel ball valve. The 2-inch (DN50) valve with a Class 600 rating is designed for high-pressure applications. The robust stainless steel (CF8M/316) construction of the valve body, ball, and stem ensures excellent durability and resistance to corrosion, making it suitable for a wide range of industrial process control applications.

Specifications

• Actuator Manufacturer: Emerson El-O-Matic
• Actuator Type: F0350M
• Valve Manufacturer: JC Valves
• Valve Figure: FIG 560
• Size: 2 Inch / DN50
• Pressure Class: ANSI Class 600
• Connection: Flanged (ASME B16.5)
• Maximum Actuator Pressure: 8 Bar (120 PSI)

Label Info

• Valve Body Material: CF8M Stainless Steel
• Ball Material: CF8M Stainless Steel
• Stem Material: TP316 Stainless Steel
• Seat Material: PTFE+SS
• Actuator Serial Number: 378005
• Valve Serial Number: 089598

Application

Ideal for automated flow control in industries such as oil and gas, chemical processing, power generation, and water treatment where high pressure and corrosive media are present.

Country of Origin

This assembly consists of components made in the Netherlands (Actuator) and Spain (Valve).

CO2 Impact

Reusing this heavy-duty industrial valve assembly saves approximately 90 kg of CO2 compared to producing a new one. This environmental saving is equivalent to the emissions from driving a car for 450 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of actuator is the El-O-Matic F0350M?

The F0350M is a pneumatic rack and pinion actuator. Based on the model number without an 'S' prefix/suffix, this is likely a double-acting model, meaning it requires compressed air to both open and close the valve.

The valve is marked with 'CL 600' and 'B16.10'. This indicates it has ANSI Class 600 Raised Face (RF) flanges, conforming to ASME B16.5 dimensions, with a face-to-face length as per ASME B16.10.

CF8M is the cast equivalent of 316 stainless steel. It offers excellent corrosion resistance in a wide range of chemical and industrial environments, particularly against chlorides. However, you should always verify material compatibility with your specific process fluid and operating conditions.
