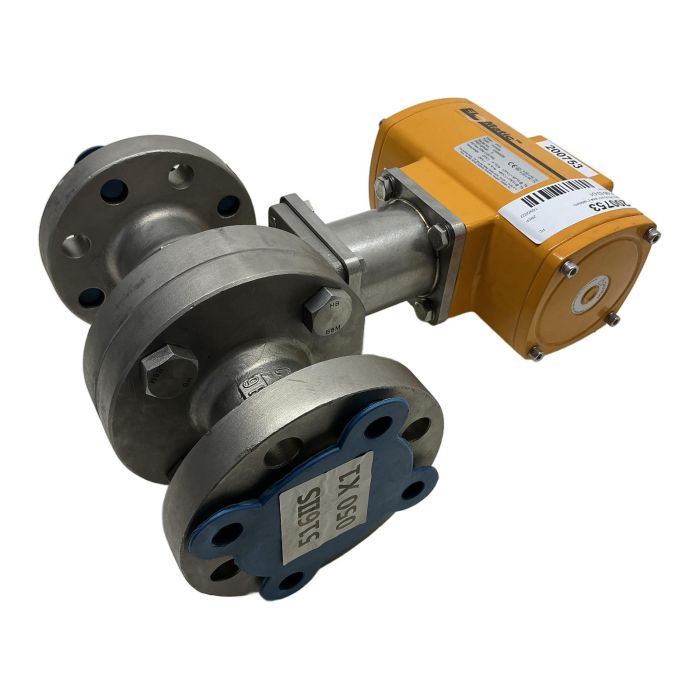

EL-Matic F0150M Actuated Ball Valve Assembly

Description

This is a complete, ready-to-install actuated valve package from EL-Matic, a trusted Emerson brand. The assembly combines a powerful F0150M pneumatic actuator with a robust 2-inch, Class 600# flanged ball valve. Constructed from high-grade CF8M stainless steel, the valve is designed for superior performance and durability in corrosive and high-pressure environments.

Specifications

• Manufacturer: EL-Matic (Emerson)
• Actuator Type: F0150M, Pneumatic, Double-Acting
• Valve Type: Ball Valve
• Valve Size: NPS 2 inch (DN50)
• Connection: Flanged, Class 600#
• Maximum Actuator Pressure: 8 Bar (120 PSI)
• Actuator Year: 2019

Label Info

• Valve Body Material: CF8M (316 Stainless Steel equivalent)
• Seat Material: PTFE+SS
• Stem Material: 316 Stainless Steel
• Ball Material: F316 Stainless Steel
• Standards: API 6D, ASME B16.10

Application

Ideal for automated flow control applications in the oil and gas, chemical processing, power generation, and water treatment industries where reliable performance under high pressure is critical.

Country of Origin

The actuator is manufactured in the Netherlands. The valve's country of origin is not specified but conforms to international standards.

CO2 Impact

Choosing this pre-owned component saves an estimated 85 kg of CO2 compared to producing a new one. This reflects significant savings in steel and aluminum manufacturing emissions.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The EL-Matic F0150M is a pneumatic, double-acting rack and pinion actuator. This means it requires compressed air to both open and close the valve, providing precise and forceful operation in both directions.

The '600#' or 'Class 600' rating refers to the valve's pressure-temperature capabilities as defined by ASME B16.34. It is designed for high-pressure service, significantly more robust than common 150# or 300# rated valves.

CF8M is the cast equivalent of Type 316 stainless steel. It contains molybdenum, which enhances its corrosion resistance, especially against chlorides and other industrial chemicals. It is an excellent choice for a wide range of process fluids.
