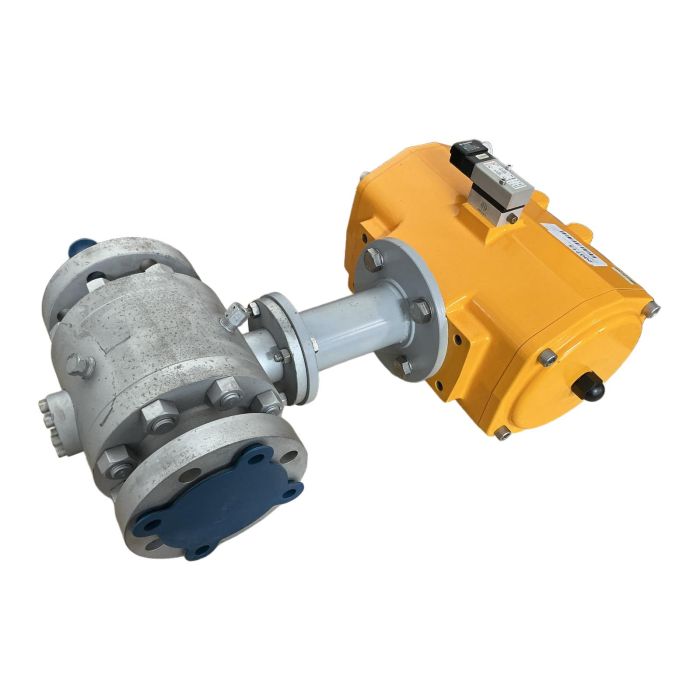

El-O-Matic ED1600 Pneumatic Actuator with 3" 600# Ball Valve

Description

This is a complete, pre-assembled pneumatic valve unit featuring a powerful El-O-Matic ED1600 actuator and a 3-inch, high-pressure ball valve. As a leading brand within Emerson, El-O-Matic is known for its durable and reliable scotch-yoke actuators. This double-acting model provides precise control for opening and closing the valve. The unit is ATEX certified, making it safe for use in hazardous environments. It is an ideal solution for process control in oil and gas, chemical, and power generation industries.

Specifications

• Manufacturer: El-O-Matic (Emerson)
• Actuator Model: ED1600.H1A00A.00N0
• Actuation Type: Pneumatic, Double-Acting
• Valve Size: 3 Inch
• Valve Pressure Class: ANSI 600#
• Maximum Actuator Pressure: 8 bar (113 PSI)
• ATEX Certification: II 2 GD c IIC TX
• Ambient Temperature Range: -20 deg C to +80 deg C

Label Info

• Actuator Type: ED1600.H1A00A.00N0
• Serial Number: 356604002 /14
• Assembly ID: P-06-03-D1
• Assembly Description: "BALL VALVE+ACT.3""-600# 6060LIM80L+ED16"

Application

Designed for heavy-duty automated flow control in high-pressure pipelines. Suitable for applications requiring robust and reliable quarter-turn valve operation in industries such as chemical processing, oil & gas production, and power plants.

Country of Origin

The actuator is made in Malaysia by Emerson.

CO2 Impact

Choosing this refurbished assembly over a new one saves approximately 850 kg of CO2 emissions, a significant contribution to sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
