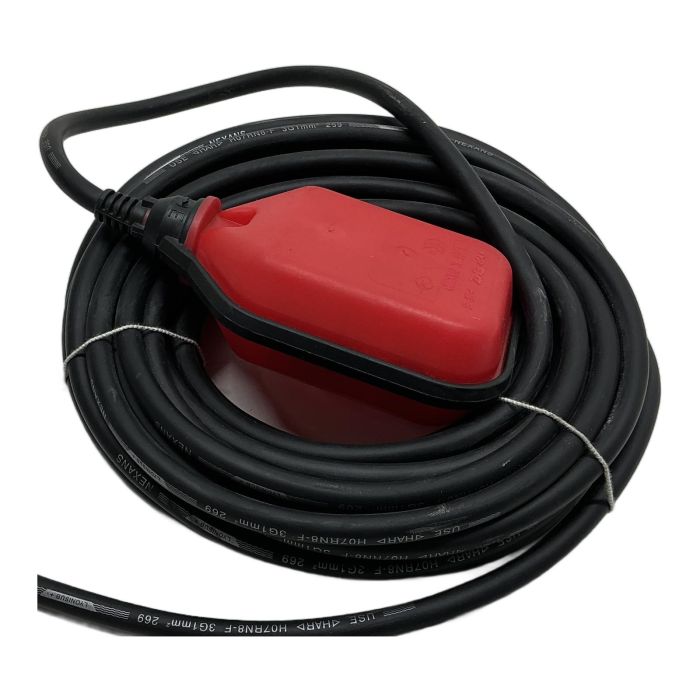

EHZ PS-E Float Switch for Level Control

Description

The EHZ PS-E is a high-quality float switch designed for automatic level regulation in tanks, wells, and pump stations. Manufactured in Germany, it offers exceptional reliability and a long service life. Its robust polypropylene casing and IP68 protection rating make it suitable for continuous immersion in a variety of liquids, including wastewater and industrial fluids. This switch is equipped with a changeover contact, allowing it to be used for both filling and emptying operations.

Specifications

• Manufacturer: EHZ
• Type: PS-E
• Switching Capacity: 10 (8) A at 250 V AC
• Contact Type: Changeover (SPDT)
• Protection Rating: IP68
• Max Temperature: 40 deg C
• Housing Material: Polypropylene (PP)
• Cable: Features Nexans H07RN8-F cable for high durability

Label Info

• TYP EHZ PS-E
• MADE IN GERMANY
• 10 (8) A 250 V ~
• T 40 IP 68

Application

Ideal for controlling pumps and valves in applications such as sump pump control, water tank level management, wastewater treatment plants, and industrial process control.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 25 kg of CO2 emissions compared to a new purchase, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The four wires typically correspond to a protective earth (green/yellow) and a changeover contact: common, normally open (NO), and normally closed (NC). This allows the switch to be used for either filling (pump on when level is low) or emptying (pump on when level is high) applications. Always verify wiring with a multimeter before installation.

The IP68 rating indicates the highest level of protection against dust and water ingress. The '6' means it is completely dust-tight. The '8' signifies it is suitable for continuous immersion in water under conditions specified by the manufacturer, making it ideal for use in tanks, wells, and sumps.

The switching differential is the difference in liquid level between the switch-on and switch-off points. For a pear-shaped float switch like the EHZ PS-E, this is determined by the free length of the cable from the suspension point to the float. A longer free cable results in a larger differential. For precise values, consult the manufacturer's technical datasheet.
