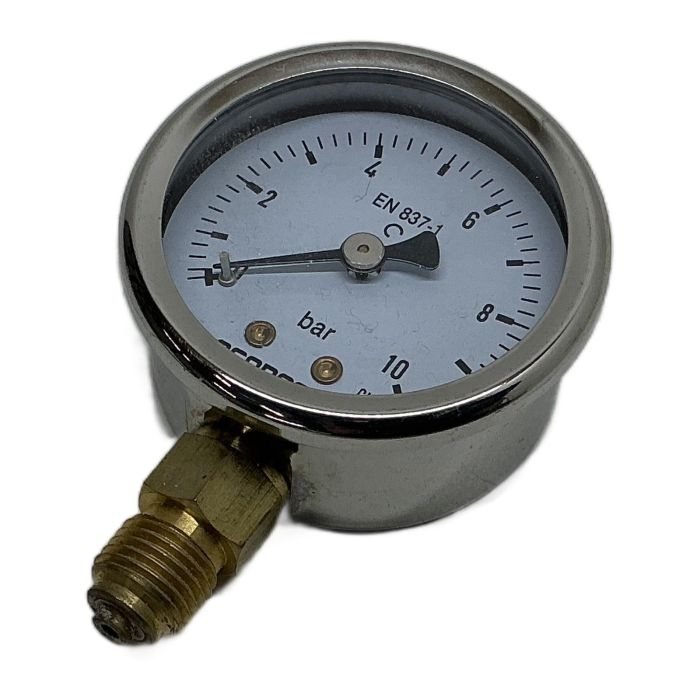

Econosto Fig 330 Pressure Gauge

Description

This is a high-quality Econosto pressure gauge, model Fig 330, designed for accurate and reliable pressure measurement in industrial applications. It features a clear dial with a range of 0 to 10 bar, housed in a durable 50mm stainless steel case. The bottom-mount connection with a 1/4 inch BSP thread allows for straightforward installation.

Specifications

• Manufacturer: Econosto (an ERIKS brand)
• Model: Fig 330
• Part Code: EC003305G1A4130
• Pressure Range: 0 - 10 bar
• Dial Diameter: 50 mm
• Connection Type: Bottom Entry
• Thread Size: G 1/4 inch BSP
• Case Material: Stainless Steel
• Window Material: Plastic
• Standard Compliance: EN 837-1
• Accuracy Class: 1.6

Application

Ideal for use in pneumatic systems, hydraulic systems, compressors, and general machinery where visual pressure monitoring is required.

Country of Origin

Manufactured in Germany.

CO2 Impact

Opting for this pre-owned component avoids the production of a new one, saving an estimated 0.4 kg of CO2 emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This pressure gauge conforms to accuracy class 1.6 according to the EN 837-1 standard. This means the maximum permissible error is +/- 1.6% of the full scale value (FSV), which is 10 bar.

The wetted parts, which are the parts that come into contact with the medium, are made of a copper alloy (brass). The casing is made of stainless steel. It is suitable for non-corrosive gases and liquids.

No, this specific model (Fig 330) is a dry gauge and is not designed to be filled with glycerine. For applications with heavy vibration or pressure pulsations, a glycerine-fillable model would be required.
