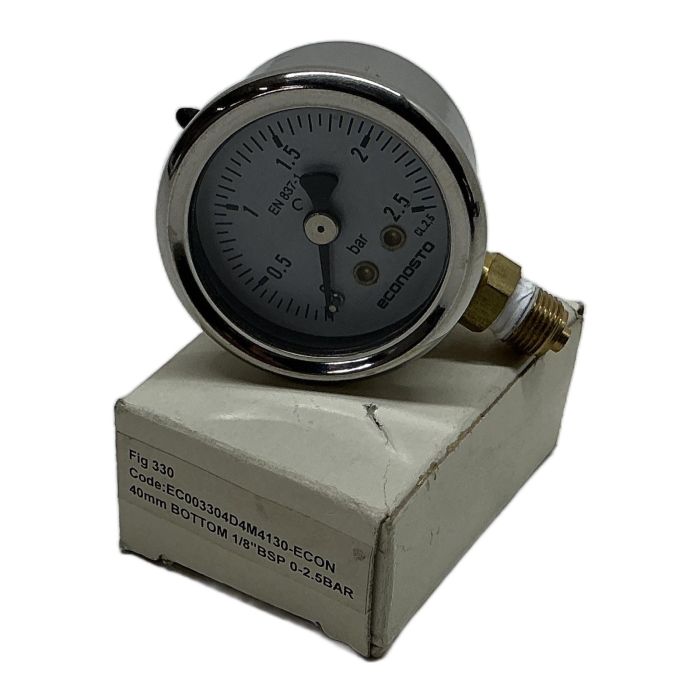

Econosto Pressure Gauge 0-2.5 bar

Description

This is a high-quality Econosto pressure gauge, model Fig 330, designed for accurate and reliable pressure measurement in a variety of industrial settings. It features a 40mm diameter dial with a clear scale from 0 to 2.5 bar. The gauge is constructed according to the EN 837-1 standard, ensuring performance and safety. With a durable casing and a standard 1/8 inch BSP bottom connection, it is easy to install and suitable for monitoring pressure in pneumatic and fluid systems. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Econosto
• Type: Fig 330
• Part Number: EC003304D4M4130-ECON
• Pressure Range: 0 - 2.5 bar
• Dial Diameter: 40 mm
• Connection: 1/8 inch BSP
• Mounting: Bottom Mount
• Accuracy Class: 2.5

Label Info

• Standard: EN 837-1

Application

Ideal for use in general machine building, pneumatic systems, HVAC, and light industrial applications where accurate pressure monitoring of non-corrosive media is required.

Country of Origin

Manufactured in the Netherlands.

CO2 Impact

By purchasing this pre-owned item, you help avoid the emission of approximately 6.0 kg of CO2, which is comparable to the energy needed to charge a smartphone 720 times.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

This refers to the accuracy class of the gauge. Class 2.5 means the maximum permissible error is +/- 2.5% of the full-scale value. For this 0-2.5 bar gauge, the reading is accurate to within +/- 0.0625 bar.

This is a standard Bourdon tube gauge with brass wetted parts. It is designed for neutral gaseous and liquid media that do not corrode brass alloys, at ambient temperatures. For aggressive media or high temperatures, a gauge with stainless steel parts would be required.

EN 837-1 is a European standard that specifies the design, construction, safety, and testing requirements for Bourdon tube pressure gauges. Compliance ensures a high level of quality, safety, and performance for industrial applications.
