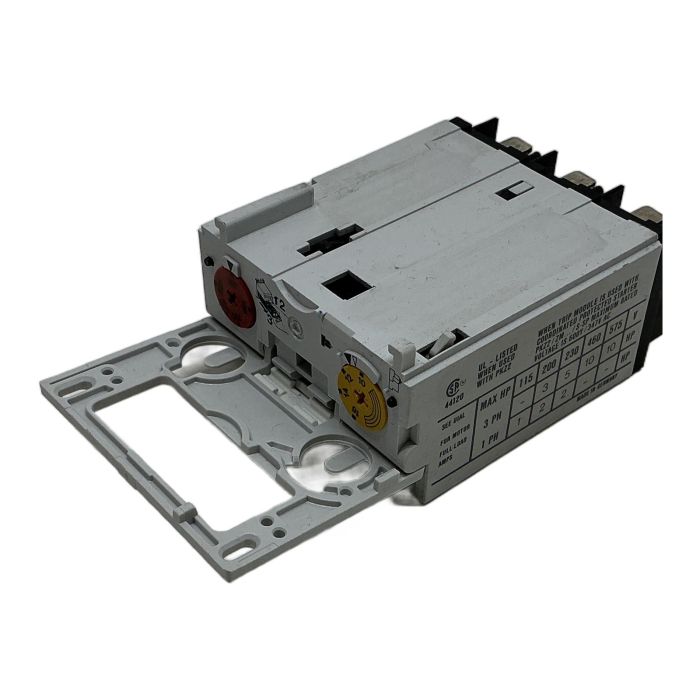

Eaton (Moeller) Motor Protection Trip Block 10-16A ZM-16-PKZ2

Description

The ZM-16-PKZ2 is a motor protection trip block from the Moeller series, now part of Eaton's portfolio. It is specifically designed to be used with PKZ2 basic units, providing reliable and adjustable thermal overload protection for electric motors. With a setting range of 10 to 16 A, it offers precise protection against overcurrents, helping to prevent motor damage and minimize downtime. This is an obsolete but essential component for the maintenance of existing installations.

Specifications

• Manufacturer: Eaton (Moeller)
• Type Number: ZM-16-PKZ2
• Article Number: 043217
• Product Type: Motor Protection Trip Block / Overload Relay
• Adjustable Current Range: 10 - 16 A
• Compatibility: For use with PKZ2 series motor-protective circuit-breakers
• Poles: 3-pole
• Release Technology: Thermal

Label Info

• Max HP 3PH (460V): 10 HP
• Max HP 3PH (230V): 5 HP
• Max HP 1PH (230V): 2 HP

Application

This trip block is ideal for a wide range of industrial applications requiring motor protection, including pumps, fans, conveyors, and machine tools. It is a critical spare part for systems built with the Moeller PKZ2 series components.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component over a new one saves approximately 6.0 kg of CO2 emissions, contributing to a more sustainable industrial environment.

Availability

This is an obsolete item, available as New Old Stock (NOS). Availability is limited. Order now from PLC2Day for expert support and fast delivery.
