Eaton Vickers Hydraulic Valve Assembly

Description

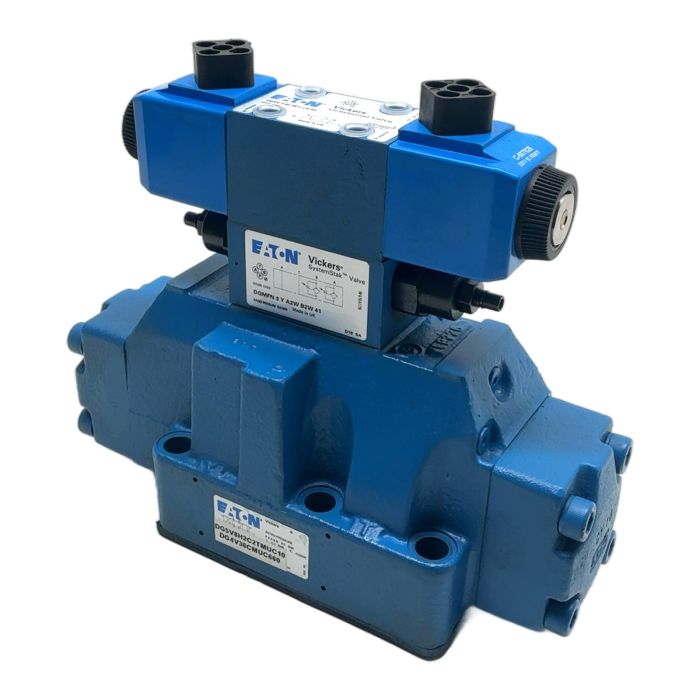

This is a complete hydraulic valve stack from Eaton Vickers, engineered for high-performance industrial applications. The assembly is built around a powerful DG5V-8 pilot-operated directional valve, providing robust and reliable control for high-flow systems. It is complemented by a DGMFN SystemStak pressure-compensated flow control valve and a DG4V direct-operated directional valve, offering multi-layered control over your hydraulic circuit. This pre-assembled stack ensures component compatibility and simplifies system design and installation.

Specifications

• Manufacturer: Eaton Vickers
• Main Valve Type: DG5V8H2C2TMUC10 (Pilot Operated Directional Valve)
• Flow Control Valve: DGMFN 3 Y A2W B2W 41 (SystemStak Pressure Compensated)
• Top Directional Valve: DG4V 3 6C M U C6 60
• Interface Size: NG25 (CETOP 8) for main valve, NG6 (CETOP 3) for stacked valves
• Maximum Operating Pressure: 350 bar (5075 PSI)
• Solenoid Voltage: 220V AC, 50 Hz
• Seal Material: Viton (U-code)

Label Info

• Label 1 (Main Valve): DG5V8H2C2TMUC10 / DG4V36CMUC660, P X A & B: 350 BAR, T: 210 BAR, Y: 210 BAR
• Label 2 (Middle Valve): DGMFN 3 Y A2W B2W 41, Rated Pressure 315 BAR
• Label 3 (Top Valve): DG4V 3 6C M U C6 60, P,A,B 350 bar, T 210 bar

Application

This valve assembly is ideal for controlling actuators in heavy-duty machinery such as industrial presses, injection molding machines, die casting equipment, and large-scale material handling systems where precise control of direction and speed is critical.

Country of Origin

Made in the United Kingdom.

CO2 Impact

Opting for this component saves an estimated 95 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for 475 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'U' designator indicates Viton seals, which are compatible with a wide range of hydraulic fluids, including petroleum-based oils, synthetic fluids, and high water content fluids. Always consult the Eaton datasheet for specific fluid compatibility and temperature ranges.

Yes, Eaton's C-frame solenoid coils are generally interchangeable. You would need to replace the existing 220V AC coils with the appropriate 24V DC version, ensuring the part number matches the valve's requirements for force and stroke.

The knobs on the DGMFN-3 valve allow for manual, tool-free adjustment of the hydraulic flow rate through ports A and B independently. This provides precise, on-the-fly control over actuator speed without needing to alter system pressure.
