Eaton Vickers Proportional Directional Valve Assembly

Description

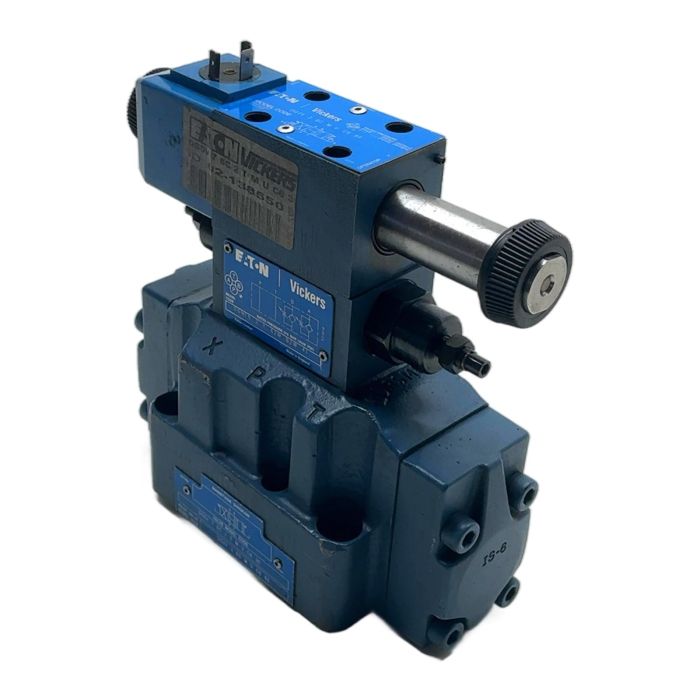

This is a complete two-stage proportional directional valve assembly from Eaton Vickers, identified by assembly ID 02-138550. It features a main stage model DG5V-7-6C-2T-M-U-C6-30, combining high performance with a precise pilot valve and a modular flow control. This unit delivers exceptional control for demanding hydraulic systems and is built for reliability and precision in applications like metal forming, injection molding, and heavy industrial machinery.

Specifications

• Manufacturer: Eaton Vickers
• Main Valve Type: DG5V-7-6C-2T-M-U-C6-30
• Pilot Valve Type: DG4V-3-6C-M-U-C6-60
• Modular Valve Type: DGMFN-3-Y-A2W-B2W-41
• Assembly ID: 02-138550
• Nominal Size: NG16 (CETOP 7) Mainstage, NG6 (CETOP 3) Pilot
• Maximum Operating Pressure (Pilot P,A,B): 350 bar (5075 psi)
• Maximum Operating Pressure (Pilot T): 210 bar (3045 psi)
• Coil Voltage: 220V 50Hz

Label Info

• Main Valve: DG5V 7 6C 2 T M U C6 30
• Pilot Valve: DG4V 3 6C M U C6 60
• Modular Valve: DGMFN 3 Y A2W B2W 41

Application

Ideal for systems requiring accurate control of hydraulic actuator speed, direction, and acceleration/deceleration. Commonly used in presses, die-casting machines, wood processing equipment, and test rigs.

Country of Origin

Made in England.

CO2 Impact

Opting for this pre-owned component saves an estimated 49 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a car for 245 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of hydraulic fluid is recommended for this valve?

These valves are typically designed for use with mineral oil-based hydraulic fluids (HL, HLP) according to DIN 51524. For use with other fluids like synthetics or water-glycols, consult the manufacturer's datasheet to ensure seal compatibility.

The '6C' designation in both the DG5V and DG4V model codes refers to the spool type. It typically indicates a closed-center spool where in the neutral position, ports P, T, A, and B are all blocked, holding the actuator in a fixed position.

While these valves can often be mounted in any orientation, it is best practice to mount them horizontally to ensure the spool remains centered and functions correctly, especially in applications with high vibration. Always refer to the installation manual for specific guidelines.
