Eaton Vickers DG4V-5 Series Hydraulic Directional Valve

Description

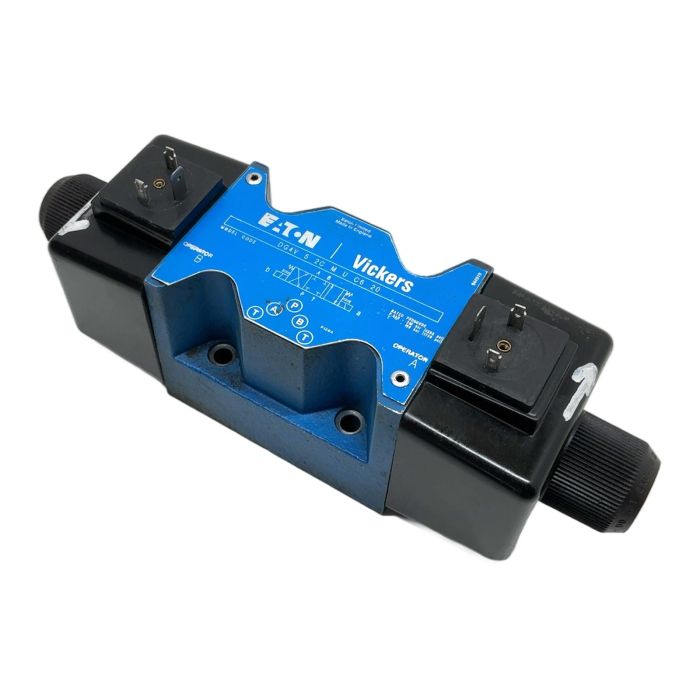

This is a DG4V 5 2C M U C6 20 hydraulic directional control valve from Eaton Vickers. It is a high-performance, double solenoid-operated, 3-position, 4-way valve designed for industrial hydraulic systems. Its NG10 (CETOP 5) mounting interface makes it a standard component for a wide range of machinery. The closed-center spool configuration ensures that all ports are blocked in the neutral position, holding the actuator in place. This valve is built for reliability and a long operational life.

Specifications

• Manufacturer: Eaton Vickers
• Model: DG4V 5 2C M U C6 20
• Interface: NG10 / CETOP 5 / NFPA D05
• Actuation: Double Solenoid
• Solenoid Voltage: 24V DC
• Spool Type: 2C (Closed Center, All Ports Blocked)
• Manual Override: Yes, push-pin style
• Connector Type: DIN 43650

Label Info

• Model Code: DG4V 5 2C M U C6 20
• Rated Pressure (P, A, B ports): 315 bar (4568 psi)
• Rated Pressure (T port): 120 bar (1740 psi)

Application

This valve is suitable for applications requiring precise control of hydraulic cylinders, motors, and rotary actuators in machine tools, presses, injection molding machines, and other industrial equipment where actuator position needs to be held securely when the valve is de-energized.

Country of Origin

Made in England.

CO2 Impact

By purchasing this reconditioned item, you are helping to avoid the 30 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial environment.

Availability

This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the '2C' spool type?

The '2C' designation indicates a closed-center spool. In the neutral (de-energized) position, this spool design blocks the P (pressure), T (tank), A, and B work ports. This is ideal for applications where a hydraulic actuator must be locked in position when the valve is not active.

This valve uses standard DIN 43650 Form 'A' connectors. These are widely available and typically feature screw terminals for wiring. Ensure you select a connector with an appropriate IP rating and gasket for your operating environment.

The manual override is a small, protected push-pin on the end of each solenoid. It allows you to manually shift the valve spool without electrical power. This is extremely useful for system setup, testing, and troubleshooting to isolate a hydraulic issue from an electrical one.
