Eaton Vickers DG4V-3 Series Hydraulic Directional Valve

Description

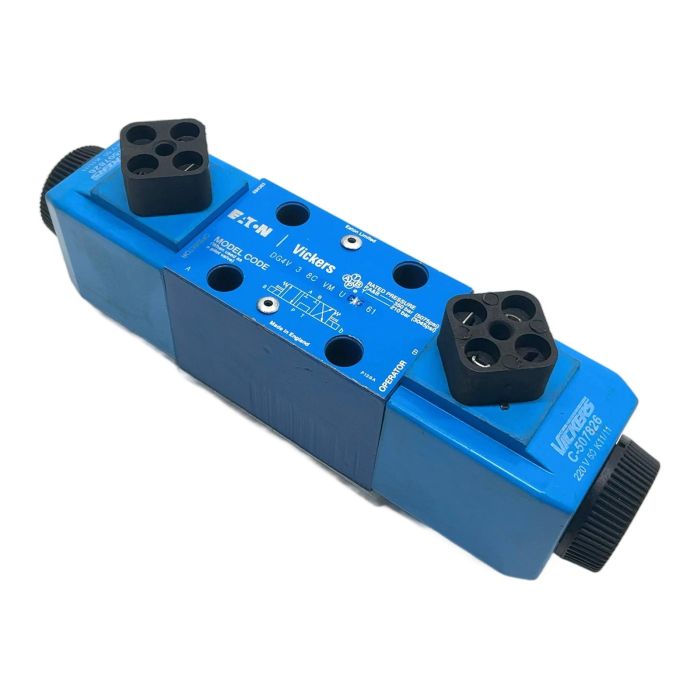

This Eaton Vickers DG4V-3-8C-VM-U-61 is an industrial-grade, solenoid-operated directional control valve. It is engineered for high performance and reliability in a wide range of hydraulic systems. As a 4-way, 3-position valve with a CETOP 3 (NG6) mounting interface, it adheres to international standards for easy integration. The '8C' spool configuration provides a blocked-center position, ensuring that the actuator is hydraulically locked when the solenoids are not energized. This valve is equipped with two 220V 50Hz AC coils (Part No. C-507826).

Specifications

• Manufacturer: Eaton Vickers
• Model: DG4V-3-8C-VM-U-61
• Type: Solenoid Operated Directional Control Valve
• Mounting Standard: ISO 4401-03, CETOP 3, NG6
• Spool Configuration: Blocked Center, Spring Centered (8C)
• Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
• Maximum Operating Pressure (Port T): 210 bar (3045 psi)
• Solenoid Coils: 2x Vickers C-507826
• Coil Voltage: 220V 50Hz AC

Application

This valve is suitable for controlling the start, stop, and direction of fluid flow in hydraulic circuits. Common applications include machine tools, presses, injection molding machines, and various material handling equipment.

Country of Origin

Made in England.

CO2 Impact

By purchasing this pre-owned valve, you are contributing to a circular economy and preventing approximately 26 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the '8C' spool type in the model code DG4V-3-8C-VM-U-61?

The '8C' designation specifies the spool configuration. The '8' indicates a blocked-center design, meaning in the neutral, de-energized position, all ports (P, T, A, and B) are blocked, holding the actuator in a fixed position. The 'C' signifies that the spool is spring-centered, returning to this neutral position when both solenoids are de-energized.

Can I replace the 220V AC coils (Part No. C-507826) with a different voltage, for example, 24V DC?

Yes, the coils on Vickers DG4V series valves are generally interchangeable. You can replace the existing 220V AC coils with DC coils of a compatible size, such as 24V DC. However, you must ensure the replacement coil has the correct power rating and is designed for the DG4V-3 valve body to ensure proper valve actuation and prevent overheating. Always consult the Eaton technical datasheet for compatible coil part numbers.

What type of hydraulic fluid is recommended for this valve, and what is the maximum pressure rating?

This valve is designed for use with standard petroleum-based hydraulic fluids (HL, HLP). For use with other fluids like water-glycols or synthetics, you should consult the manufacturer's documentation to ensure seal compatibility. The maximum rated pressure is 350 bar (5075 psi) for the P, A, and B ports, and 210 bar (3045 psi) for the tank (T) port.
