Eaton Vickers DG4V-3 Solenoid Operated Directional Valve

Description

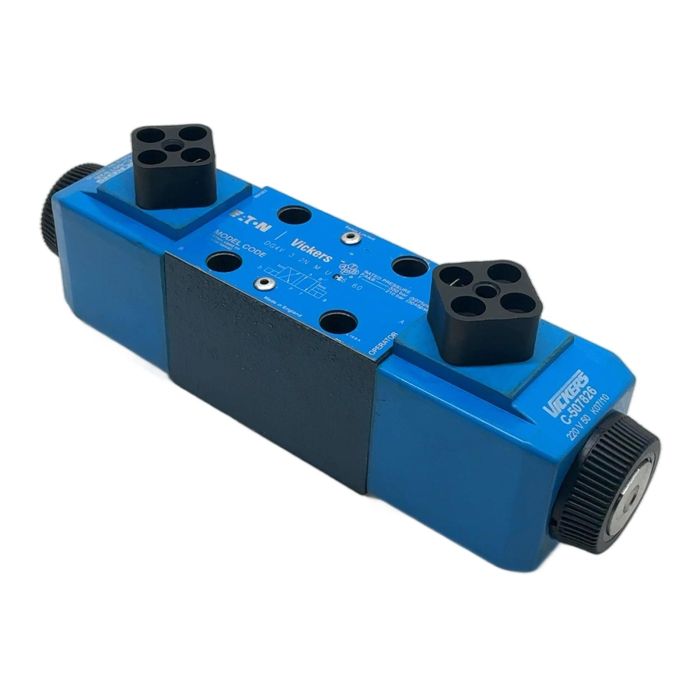

This Eaton Vickers DG4V-3 is a high-quality, solenoid-operated directional control valve, designed for reliable performance in demanding industrial hydraulic systems. It features a robust NG6 (D03) interface for standard subplate mounting. With its double solenoid and spring-centered, all-ports-blocked configuration, it provides precise and safe control of hydraulic actuators. This valve is an industry-standard component known for its durability and long service life.

Specifications

• Manufacturer: Eaton Vickers
• Model: DG4V-3-2N-M-U-C6-60
• Type: 4-Way, 3-Position Directional Control Valve
• Actuation: Double Solenoid, Spring Centered
• Spool Type: 2N (All ports blocked in center position)
• Mounting Interface: NG6 / CETOP 3 / NFPA D03
• Coil Voltage: 220V AC, 50 Hz
• Coil Part Number: C-507826
• Maximum Pressure (Ports P, A, B): 350 bar / 5075 psi
• Maximum Pressure (Port T): 210 bar / 3045 psi

Label Info

• Brand: EATON Vickers
• Model Code: DG4V 3 2N M U H5 60
• Coil: VICKERS C-507826 220V 50 K07/10

Application

This valve is ideally suited for a wide range of hydraulic applications, including machine tools, industrial power units, presses, injection molding machines, and mobile equipment requiring precise directional control.

Country of Origin

Made in England.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the emission of approximately 12.0 kg of CO2. This saving is equivalent to the emissions from driving a car for 60 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2N' designates a specific spool configuration. It is a 3-position, spring-centered valve where, in the neutral (center) position, all ports (P, T, A, and B) are blocked, preventing any fluid flow.

Yes, the Eaton Vickers DG series valves are modular. The coils (part no. C-507826 for 220V AC) can be removed and replaced with other compatible coils of different voltages (e.g., 24V DC or 110V AC), provided they are designed for the DG4V-3 valve series.

For optimal performance and longevity of the DG4V-3 series, Eaton Vickers recommends using hydraulic fluid with a cleanliness level of at least ISO 4406 code 20/18/15.
