Eaton Vickers Hydraulic Valve Assembly DG4V and CG5V Series

Description

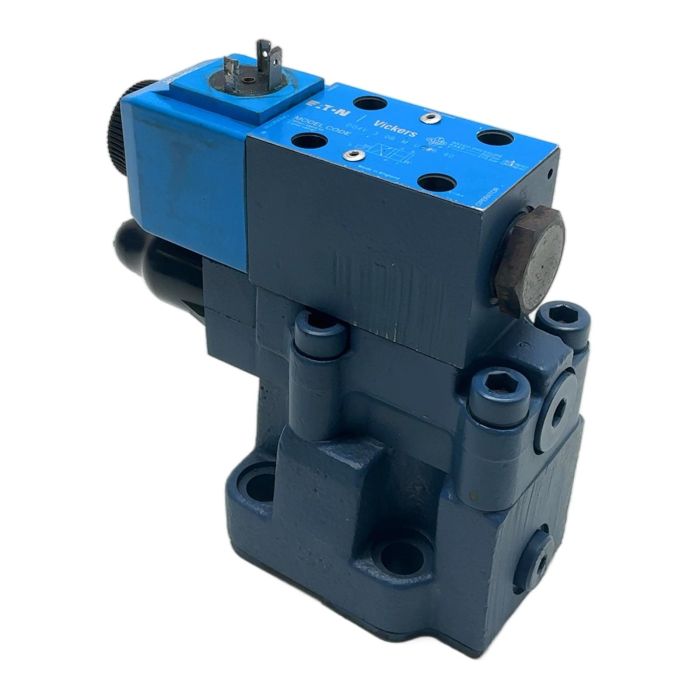

This is a complete hydraulic valve assembly from Eaton Vickers, combining a DG4V-3 series solenoid-operated directional control valve with a CG5V-6 series pilot-operated pressure relief valve. This modular unit is designed for high-pressure industrial applications, offering precise control over hydraulic fluid flow and system pressure. It features a robust cast iron body and a reliable 220V AC solenoid for actuation.

Specifications

• Manufacturer: Eaton Vickers
• Pilot Valve Type: DG4V 3 0B M UC6 60
• Base Valve Type: CG5V 6GW DMU C6 11
• Max. Operating Pressure (P, A, B ports): 350 bar / 5075 psi
• Max. Tank Line Pressure (T port): 210 bar / 3045 psi
• Solenoid Coil Voltage: 220V 50Hz
• Coil Part Number: C-507826
• Mounting Interface: CETOP / ISO standard

Label Info

• Pilot Valve Code: DG4V 3 0B M U C6 60
• Base Valve Code: CG5V 6GW DMU C6 11
• Pilot Code: 859195

Application

Ideal for use in industrial machinery such as hydraulic presses, machine tools, injection molding machines, and heavy mobile equipment where reliable directional and pressure control is critical.

Country of Origin

Made in the United Kingdom.

CO2 Impact

By reusing this component, you are avoiding approximately 15.0 kg of CO2 emissions from the production of a new one.

Availability

This unit is a used, tested item in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '0B' spool is a 'blocked center' configuration. In the neutral (de-energized) position, it blocks the pressure port (P) and both work ports (A and B), while allowing flow from the work ports to the tank port (T). This is commonly used to hold a hydraulic actuator in a fixed position when the valve is not active.

Yes, the solenoid coil on Eaton Vickers DG4V-3 valves is modular and can be replaced. You would need to source a compatible 24V DC coil for the C6-style valve and ensure your control system is adapted for the different voltage and current requirements.

This valve assembly is designed for use with standard mineral oil-based hydraulic fluids (such as ISO VG 32, 46, or 68). For use with other fluids like water glycols or synthetic esters, you should consult the Eaton Vickers technical documentation to ensure seal compatibility.
