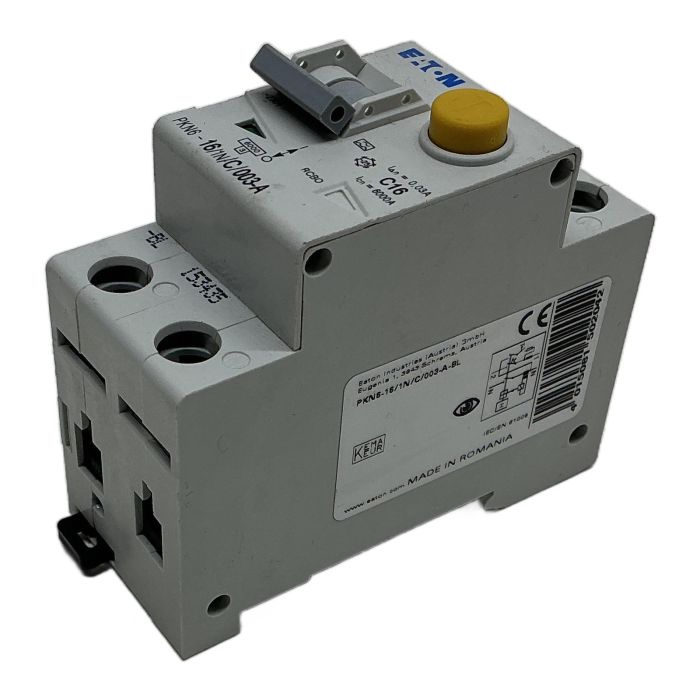

Eaton PKN6 Series RCBO Circuit Breaker

Description

The Eaton PKN6-16/1N/C/003-A-BL is a high-quality Residual Current Circuit Breaker with Overcurrent protection (RCBO). This device combines the functionality of a residual current device (RCD) and a miniature circuit breaker (MCB) in a single compact unit. It provides comprehensive protection for electrical circuits against short-circuits, overloads, and earth fault currents, ensuring the safety of both personnel and equipment.

Specifications

• Manufacturer: Eaton
• Model: PKN6-16/1N/C/003-A-BL
• Article Number: 153435
• Rated Current: 16 A
• Rated Residual Current: 30 mA
• Tripping Characteristic: C-Curve
• Number of Poles: 1P+N
• Rated Breaking Capacity: 6 kA
• Residual Current Type: A
• Standard: IEC/EN 61009

Label Info

• PKN6-16/1N/C/003-A-BL
• C16 / Ian=0.03A
• Icn=6000A
• EAN: 4015081502042

Application

This RCBO is ideal for use in final distribution boards for residential, commercial, and industrial applications. It is particularly suited for protecting circuits with equipment that may produce pulsating DC fault currents, such as those with electronic components.

Country of Origin

Made in Romania.

CO2 Impact

Opting for this pre-owned component saves an estimated 8.0 kg of CO2 compared to manufacturing a new one. This choice supports a sustainable circular economy in the industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A Type AC RCBO is designed to trip on sinusoidal AC fault currents only. This Type A RCBO, however, trips on both sinusoidal AC and pulsating DC fault currents, offering broader protection for modern electronic equipment.

The 'C' refers to the tripping characteristic. C-curve breakers are designed to trip between 5 and 10 times the rated current. They are suitable for general applications with moderate inrush currents, such as lighting, sockets, and small motors.

This is a single-phase (1 Pole + Neutral) device and is designed to protect a single-phase circuit. For a three-phase system, you would typically use a 4-pole (3P+N) RCBO or individual RCBOs for each phase if required.
