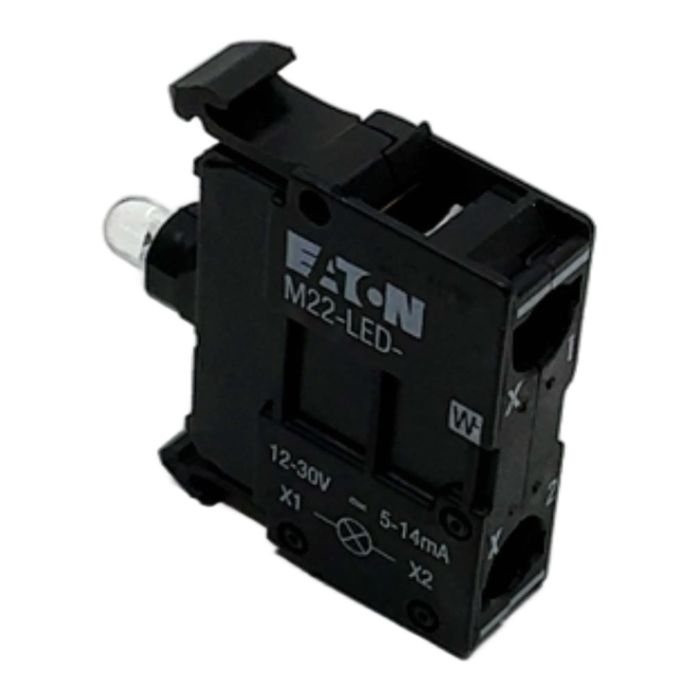

Eaton M22-LED-W White LED Element

Description

The Eaton M22-LED-W is a modular LED element designed for reliable illumination in industrial control and signaling applications. This component provides bright, white light and is compatible with the extensive Eaton M22 series of pushbuttons, switches, and pilot lights. It features a versatile operating voltage of 12-30V AC/DC and secure Cage Clamp terminals for quick installation.

Specifications

• Manufacturer: Eaton
• Type: M22-LED-W
• Part Number: 216560
• Rated Voltage: 12-30V AC/DC
• Current: 5-14mA
• Color: White (W)
• Connection: Cage Clamp
• Mounting: Front Mounting

Label Info

• Standard: IEC 60947-5-1
• Certifications: UL Listed, CSA, CCC, CE

Application

This LED element is ideal for use in machine control panels, automation systems, and manufacturing equipment to provide visual status indication for operators.

Country of Origin

Made in Germany.

CO2 Impact

Opting for a reconditioned component like this one prevents the emission of approximately 0.6 kg of CO2, which would have been generated during the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Can this M22-LED-W element be used with any voltage?

No, it is specifically designed for a voltage range of 12 to 30V AC/DC. Applying a higher voltage, such as 120V or 230V, will permanently damage the LED.

Is this a 'Cage Clamp' or 'Screw Terminal' version?

This specific model, M22-LED-W, features Cage Clamp terminals. This allows for quick, secure, and vibration-resistant wire connections without the need for tools to tighten screws.

Can I use this LED element with older Eaton/Moeller M22 series actuators?

Yes, the Eaton M22 series is designed for modularity and backward compatibility. This M22-LED-W element will fit standard M22 series pushbutton and selector switch actuators, as well as indicator lights.
