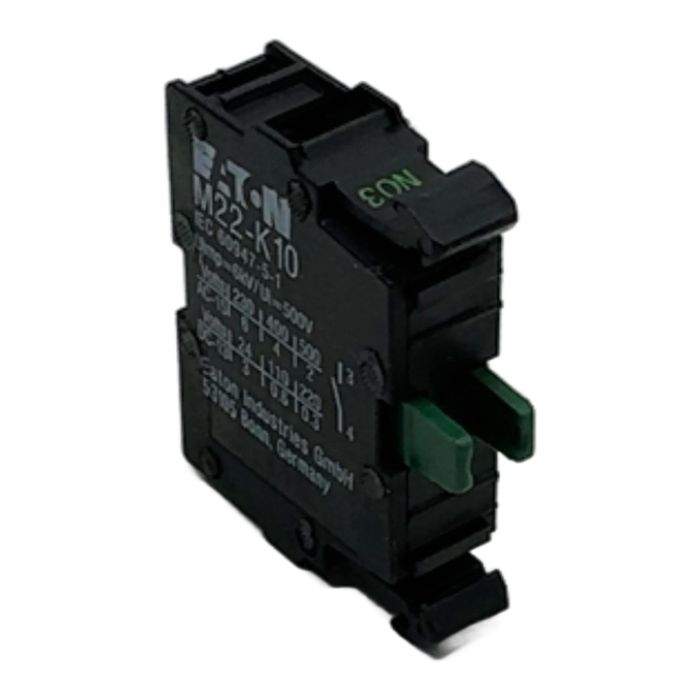

Eaton M22-K10 Contact Element

Description

The Eaton M22-K10 is a standard contact element designed for front mounting in industrial control panels. It features one normally open (NO) contact and is part of the comprehensive M22 modular pushbutton series. Its robust design and reliable screw terminals ensure a secure connection and long service life in demanding environments.

Specifications

• Manufacturer: Eaton
• Type: M22-K10
• Article Number: 216376
• Contact Configuration: 1 Normally Open (NO)
• Mounting Type: Front Mount
• Connection Type: Screw Terminals
• Rated Insulation Voltage (Ui): 500V
• Impulse Withstand Voltage (Uimp): 6 kV
• Operational Current (AC-15, 230V): 6 A
• Operational Current (DC-13, 24V): 3 A

Label Info

• Standard: IEC/EN 60947-5-1
• Approvals: UL, CSA

Application

This contact block is ideal for use with Eaton M22 series pushbuttons, selector switches, and emergency-stop actuators to provide feedback or control logic in automation systems, machinery, and electrical panels.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help avoid 0.8 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The M22-K10 is designed for front mounting, attaching directly to the back of an M22 series actuator.

This contact block is equipped with secure screw terminals, suitable for a wide range of wire gauges.

Yes, the Eaton M22 series contact elements are modular and designed to be stacked, allowing you to create custom contact configurations as needed for your application.
