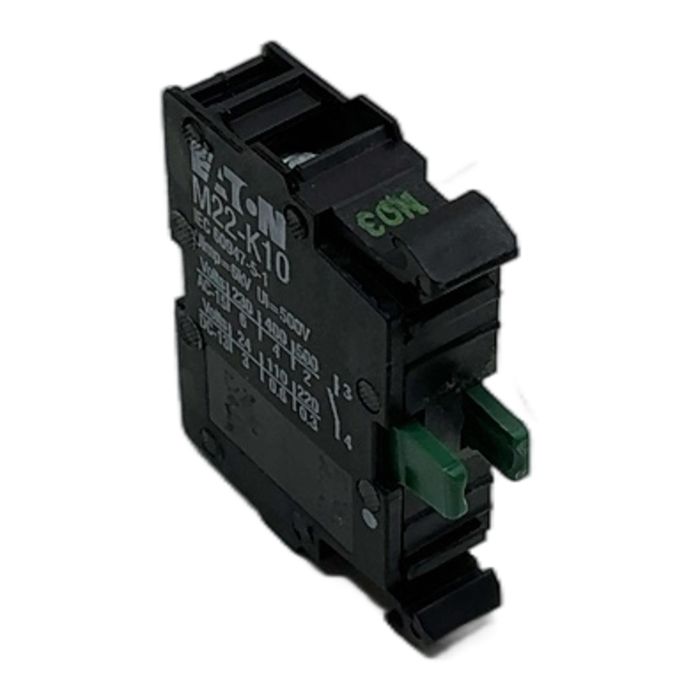

Eaton Contact Element 1NO M22-K10

Description

The Eaton M22-K10 is a high-reliability contact element designed for use with the M22 modular pushbutton series. This component provides one normally open (NO) contact and is intended for front mounting. It features secure screw terminals and is engineered for a long mechanical and electrical life in demanding industrial environments.

Specifications

• Manufacturer: Eaton
• Type: M22-K10
• Article Number: 216376
• Contact Configuration: 1 Normally Open (1NO)
• Mounting Style: Front Mount
• Terminal Type: Screw Terminals
• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Standard: IEC/EN 60947-5-1

Label Info

• AC-15 Utilization Category: 6A at 230V, 4A at 400V
• DC-13 Utilization Category: 3A at 24V, 0.6A at 110V

Application

Ideal for integration into control panels, machinery, and automation systems where reliable signal switching is required. It is commonly used with pushbuttons, selector switches, and emergency stop buttons to control motors, lights, and other electrical loads via a control circuit.

Country of Origin

Made in Italy.

CO2 Impact

By choosing this pre-owned component, you are actively contributing to a circular economy and avoiding approximately 0.4 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The M22-K10 is a Normally Open (NO) contact block, meaning the circuit is open until the actuator is pressed. The M22-K01 is a Normally Closed (NC) contact block, where the circuit is closed until the actuator is pressed. They are easily identified by the green (NO) or red (NC) plunger.

You can typically mount up to three M22-K... contact blocks side-by-side on the mounting adapter of an M22 series pushbutton or selector switch, allowing for complex circuit control from a single operator.

While standard M22-K10 blocks are highly reliable for general control circuits, for safety applications requiring positive opening operation according to IEC/EN 60947-5-1, you should use Eaton's specific safety contact blocks, often identified with a yellow color or special markings.
