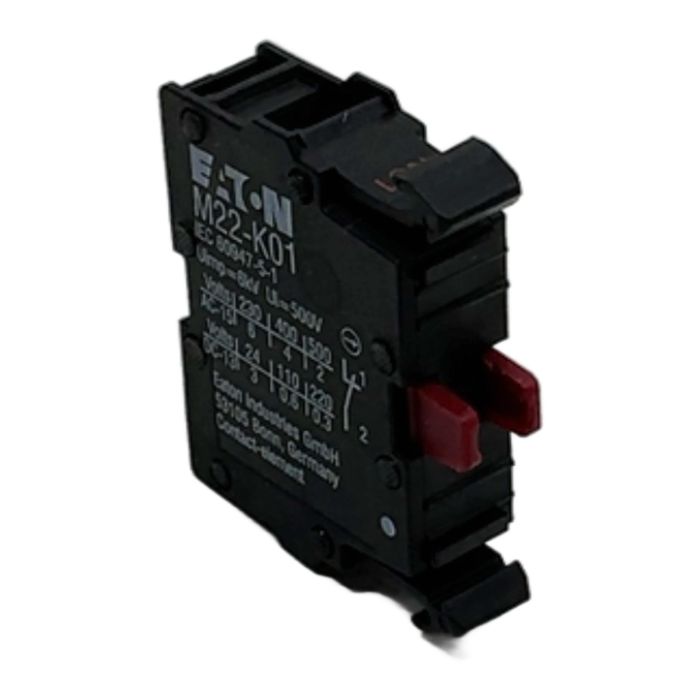

Eaton M22-K01: Reliable Normally Closed Contact Element

Description

The Eaton M22-K01 is a single normally closed (NC) contact element designed for the modular M22 series of industrial pushbuttons and switches. Engineered in Germany, this component provides dependable performance for critical control circuits. It features robust screw terminals for secure wiring and is intended for front mounting applications. This contact block is essential for stop functions, safety circuits, and general control logic where a closed circuit is the default state.

Specifications

• Contact Configuration: 1 Normally Closed (NC)
• Mounting: Front Mounting
• Terminal Type: Screw Terminals
• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• AC-15 Utilization Category: 6A at 230V, 4A at 400V
• DC-13 Utilization Category: 3A at 24V, 0.3A at 220V
• Standard: Conforms to IEC 60947-5-1

Label Info

• Manufacturer: Eaton
• Type: M22-K01
• Part Number: 216378

Application

Ideal for use in industrial control panels, machinery automation, and manufacturing systems. It is commonly paired with M22 pushbuttons, selector switches, and emergency stop operators.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this remanufactured item, you help avoid 1.0 kg of CO2 emissions, which is equivalent to charging a smartphone 120 times.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary difference is the contact type. The M22-K01 is a Normally Closed (NC) contact, meaning the circuit is complete when the actuator is not pressed. The M22-K10 is a Normally Open (NO) contact, where the circuit is open until the actuator is pressed. The plunger color is also different for easy identification: red for NC (K01) and green for NO (K10).

Yes, the Eaton M22 modular system is designed for flexibility. You can stack up to three contact blocks on the mounting adapter for a standard M22 operator, allowing for various contact combinations to suit your application's logic.

For reliable and secure connections, Eaton recommends a tightening torque of 0.8 to 1.0 Nm for the screw terminals on the M22 series contact blocks. Using a calibrated torque screwdriver is advised for critical applications.
