MAGN.SWITCH.18 5KW 230V + Auxiliary contact block: MAGN.SWITCH.18 5KW 230V, Technical details, Nominal control voltage at AC 50 Hz (V) 230/230, Nominal control voltage at AC 60 Hz (V) 230/230, Nom. control voltage at DC (V) 0/0, Control voltage type AC, Nom. operating current Ie at AC-1, 400 V (A) 60, Nom operating current Ie at AC-3, 400 V (A) 40, Nom. power at AC-3, 400 V (kW) 18.50, Nom. operating current Ie at AC-4, 400 V (A) 18, Nom. power at AC-4, 400 V (kW) 9, Modular design (for rail mounting) Nee, Number of auxiliary contacts as make contact 0, Number of auxiliary contacts as break contact 0, Connection method of main current circuit Screw connection, Number of main contacts as break contact 0, Number of main contacts as make contact 3, Ask a question about this product, Log in or create an account to ask a question., Documents, Auxiliary contact block, DILM150-XHIV22 EAT 277953, Technical details, Number of contacts as changeover contact 0, Number of contacts as make contact 2, Number of contacts as break contact 2, Nom. operating current Ie at AC-15, 230 V (A) 6, Execution of electrical connection Screw connection, Execution Can be set up, Mounting method Front mounting, Number of fault signal switches 0, Lampholder; No

• MAGN.SWITCH.18 5KW 230V
• Auxiliary contact block: MAGN.SWITCH.18 5KW 230V
• Technical Details:
• Nominal control voltage at AC 50 Hz (V): 230/230
• Nominal control voltage at AC 60 Hz (V): 230/230
• Nominal control voltage at DC (V): 0/0
• Control voltage type: AC
• Nom. operating current Ie at AC-1, 400 V (A): 60
• Nom operating current Ie at AC-3, 400 V (A): 40
• Nom. power at AC-3, 400 V (kW): 18.50
• Nom. operating current Ie at AC-4, 400 V (A): 18
• Nom. power at AC-4, 400 V (kW): 9
• Modular design (for rail mounting): Yes
• Number of auxiliary contacts as make contact: 0
• Number of auxiliary contacts as break contact: 0
• Connection method of main current circuit: Screw connection
• Number of main contacts as break contact: 0
• Number of main contacts as make contact: 3
• Documents
• Auxiliary contact block, DILM150-XHIV22 EAT 277953
• Technical Details:
• Number of contacts as changeover contact: 0
• Number of contacts as make contact: 2
• Number of contacts as break contact: 2
• Nom. operating current Ie at AC-15, 230 V (A): 6
• Execution of electrical connection: Screw connection
• Execution: Can be set up
• Mounting method: Front mounting
• Number of fault signal switches: 0
• Lampholder: No

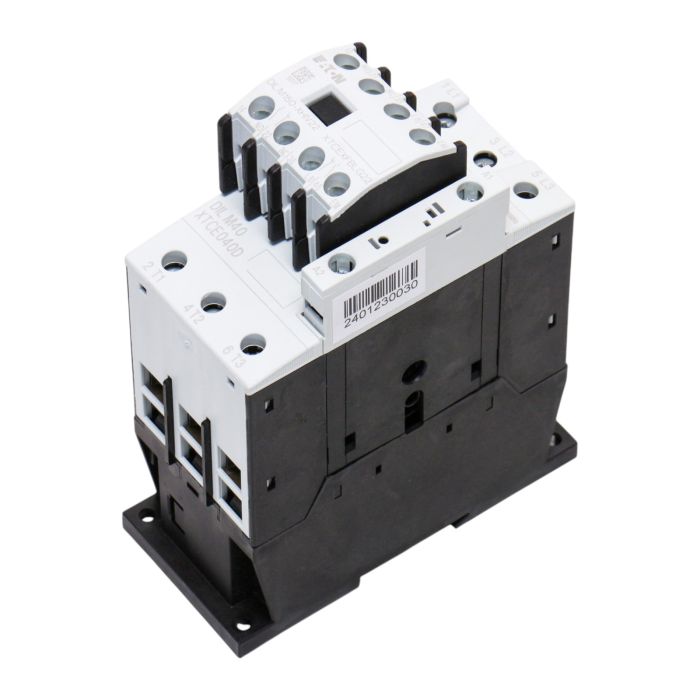

Eaton DILM40 XTCE0400 + DILM150 XHIV22 is a high-quality industrial item suitable for a wide range of applications. It can be used in various industrial applications such as manufacturing, automation, and control systems. This item is available for purchase at PLC2Day.
