Eaton Vickers DG4V-5 Series Hydraulic Valve

Description

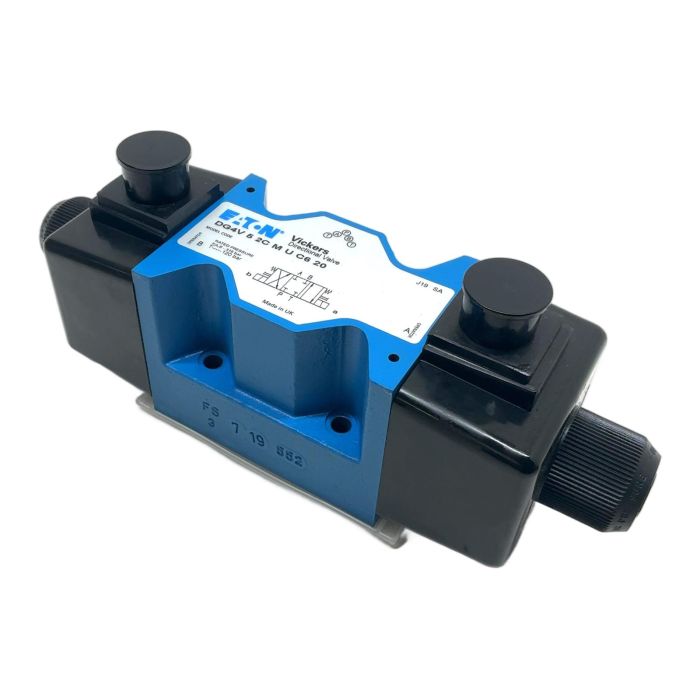

This is a DG4V-5-2C-M-U-C6-20, a high-performance solenoid-operated directional control valve from Eaton's renowned Vickers line. Engineered for reliability in demanding industrial hydraulic systems, it provides precise control of fluid direction. This model features a standard NG10 (D05) mounting pattern for easy integration and interchangeability. It is equipped with dual 24V DC solenoids and manual overrides for testing or emergency operation.

Specifications

• Manufacturer: Eaton Vickers
• Model: DG4V-5-2C-M-U-C6-20
• Part ID: 616779
• Valve Type: 4-Way, 3-Position, Solenoid-Operated
• Mounting Interface: ISO 4401-05, NG10, D05
• Spool Type: 2C - Tandem Center (P to T, A and B ports blocked)
• Coil Voltage: 24V DC
• Electrical Connector: DIN 43650 (ISO 4400)
• Maximum Operating Pressure (Ports P, A, B): 345 bar
• Maximum Operating Pressure (Port T): 120 bar

Application

Ideal for use in industrial machinery, mobile equipment, presses, and manufacturing automation where precise hydraulic control is essential. The tandem center configuration is suitable for circuits where the pump needs to be unloaded to the tank in the neutral position.

Country of Origin

Made in the UK.

CO2 Impact

Opting for this component saves an estimated 30.0 kg of CO2 compared to a new production. This is a significant contribution to reducing industrial carbon footprints.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the significance of the "2C" spool type in this DG4V-5 valve?

The "2C" code specifies a tandem center spool. In the neutral (de-energized) position, this spool configuration connects the pressure port (P) directly to the tank port (T), effectively unloading the pump. Simultaneously, it blocks the work ports (A and B), holding the actuator in position.

Can the 24V DC coils (model C6) be replaced with a different voltage, like 110V AC?

Yes, the coils on DG4V-5 valves are interchangeable. To switch to 115V AC, you would need to purchase and install Eaton's AC-rated coils (e.g., model 'A6' coils) and ensure your control system provides the correct voltage.

What does the NG10 / ISO 4401-05 mounting interface mean for installation?

It refers to a standardized porting and mounting bolt pattern. This ensures that the valve is a direct physical replacement for any other valve from any manufacturer that adheres to this widely-adopted industrial standard, simplifying installation and maintenance.
