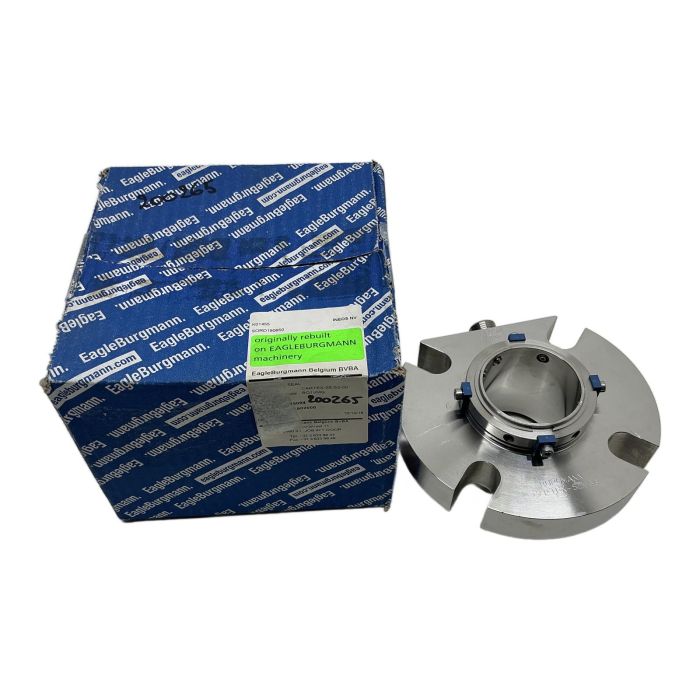

EagleBurgmann Cartex-SE/53-00 Mechanical Cartridge Seal

Description

This is a high-quality single cartridge mechanical seal from EagleBurgmann, model Cartex-SE/53-00. Engineered for a 53mm shaft diameter, it provides a reliable and durable sealing solution for pumps and other rotating equipment. The cartridge design ensures easy and error-free installation, significantly reducing maintenance time. This seal includes a 3/8 NPT flush port for optimized performance and longevity.

Specifications

• Manufacturer: EagleBurgmann
• Model: Cartex-SE/53-00
• Product Type: Mechanical Cartridge Seal
• Shaft Diameter: 53 mm
• Material Code: BQ1VMG (Carbon/SiC/FKM)
• Flush Port: 3/8 inch NPT

Label Info

• Part Number: 200265
• Order Number: 1902000

Application

Designed for universal use in various industries including chemical, water and wastewater, and general industrial applications. It is suitable for sealing a wide range of media in centrifugal pumps, process pumps, and other rotating machinery.

Country of Origin

Manufactured in Germany.

CO2 Impact

Choosing this reused component helps avoid the production of a new one, saving an estimated 20.0 kg of CO2. This is comparable to the emissions from driving 100 km in a standard passenger car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

BQ1VMG is a standard EagleBurgmann material code. 'B' typically refers to Carbon graphite antimony impregnated (for the stationary seat), 'Q1' refers to Silicon carbide (for the rotating face), and 'VMG' specifies FKM (Viton) for the O-rings and secondary seals, suitable for a wide range of chemicals and temperatures.

The flush connection is used to introduce a clean, external fluid (a 'flush') into the seal chamber. This serves to cool the seal faces, lubricate them, and prevent the process fluid from crystallizing or building up around the seal, thereby extending its service life, especially in demanding applications.

Yes, all EagleBurgmann Cartex seals are pre-assembled and pre-set in the factory. Installation involves sliding the cartridge onto the shaft and securing it. It is crucial to ensure the shaft and seal chamber are clean and free of burrs. The blue spacer clips seen in the image must only be removed after the gland plate is fully bolted down and the grub screws on the collar are tightened.
