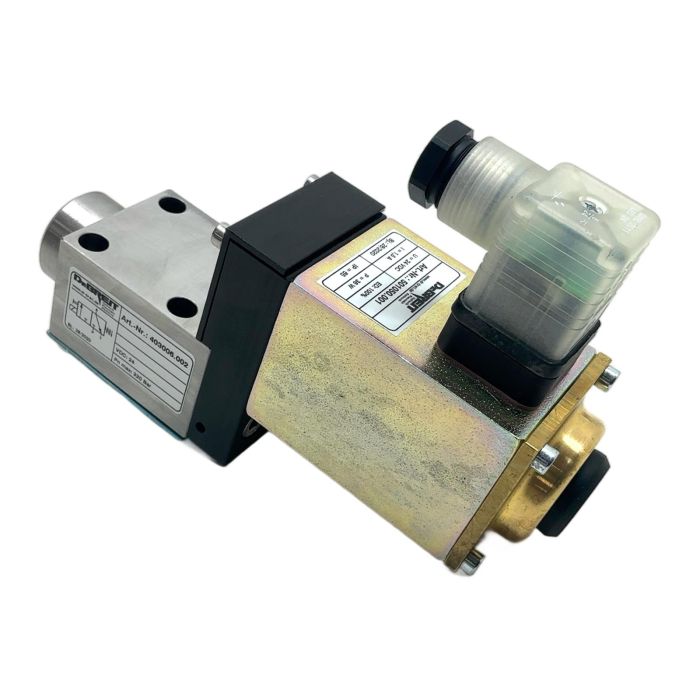

Dr-Breit 2/2-Way Solenoid Poppet Valve Assembly

Description

This is a complete solenoid valve assembly from Dr-Breit, combining the hydraulic valve (403006.002) with the corresponding solenoid coil (501050.001). Designed for high-pressure hydraulic systems, this 2/2-way poppet valve provides reliable on/off control. Its robust construction ensures long service life in demanding industrial environments. The unit operates on a 24V DC supply and can handle pressures up to 320 Bar.

Specifications

• Manufacturer: Dr-Breit
• Valve Type: 2/2-Way Solenoid Poppet Valve
• Operating Voltage: 24 VDC
• Maximum Pressure (Pn max): 320 Bar
• Power Consumption: 36 W
• Current Draw: 1.5 A
• Duty Cycle (ED): 100%
• Ingress Protection: IP65
• Year of Manufacture: 2020

Label Info

• Valve Body Art.-Nr.: 403006.002
• Solenoid Coil Art.-Nr.: 501050.001

Application

Ideal for use in industrial hydraulic power packs, mobile machinery, machine tools, and any application requiring reliable high-pressure fluid control.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps save approximately 27 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This valve is designed for standard mineral oil-based hydraulic fluids (HL, HLP) according to DIN 51524. Always verify seal compatibility when using special or synthetic fluids.

Yes, the solenoid coil can be replaced independently of the valve body. This allows for cost-effective and straightforward maintenance in case of a coil failure.

While the valve can function in any orientation, a horizontal mounting of the main axis is recommended for optimal performance and service life, as it minimizes the effects of gravity on the internal moving parts.
