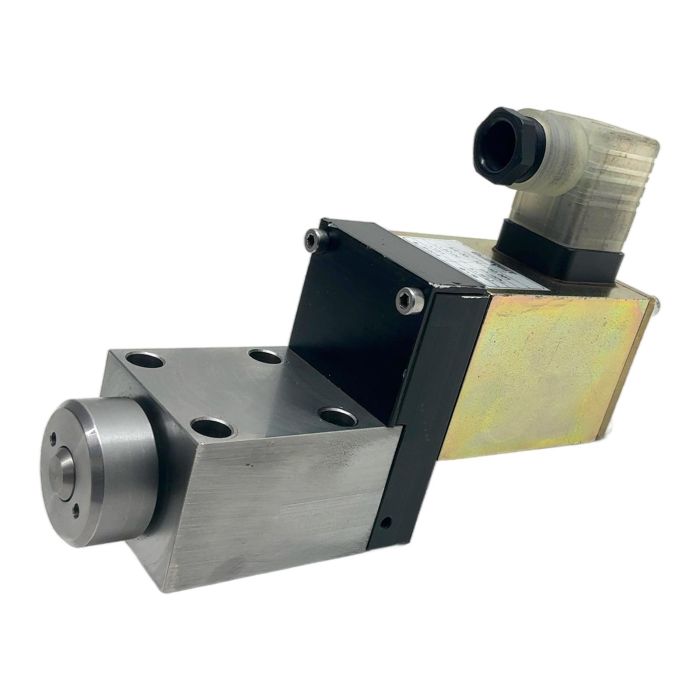

D. Breit 2/2-Way Hydraulic Solenoid Valve 403006.001

Description

This is a high-quality hydraulic solenoid valve assembly from D. Breit, designed for demanding industrial applications. The valve, part number 403006.001, is a 2/2-way seat valve capable of handling pressures up to 320 Bar. It is actuated by a 24 VDC solenoid coil (part number 501050.001) rated for 100% duty cycle, ensuring reliable and continuous operation. Its robust construction and standard interface make it an ideal component for controlling hydraulic flow in various machinery.

Specifications

• Manufacturer: D. Breit
• Valve Type: 2/2-Way Solenoid Seat Valve
• Operating Voltage: 24 VDC
• Maximum Nominal Pressure (Pn max): 320 Bar
• Solenoid Power: 36 W
• Solenoid Current: 1.5 A
• Duty Cycle (ED): 100%
• Ingress Protection: IP65
• Mounting Interface: Likely NG6 / CETOP 3

Label Info

• Valve Block (403006.001): Pn max: 320 Bar, VDC: 24, Bj.: 37/2016
• Solenoid Coil (501050.001): U = 24 VDC, I = 1.5 A, P = 36 W, ED: 100%, IP = 65, Bj.: 37/2016

Application

This valve is suitable for a wide range of industrial hydraulic systems, including machine tools, presses, mobile hydraulics, and general manufacturing equipment where precise and reliable flow control is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned valve, you help avoid the emission of approximately 25 kg of CO2. This is comparable to the savings from driving a car for 125 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Based on the port configuration visible on the base, this valve highly likely uses a standard NG6 (also known as CETOP 3 or ISO 4401-03) mounting interface, which is common for this type of industrial hydraulic valve.

Yes, the solenoid coil is a separate component and can typically be unscrewed and replaced without removing the entire valve from the system, which simplifies maintenance.

While specific fluid recommendations require a datasheet, valves of this type are generally designed to work with standard mineral oil-based hydraulic fluids (like HLP, HVLP) according to DIN 51524. Always ensure fluid cleanliness meets system requirements.
