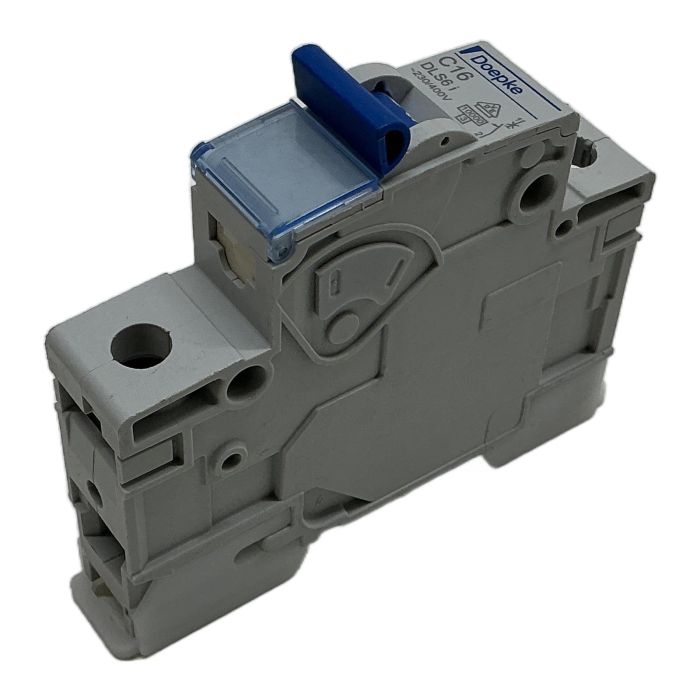

Doepke DLS6 i C16 Miniature Circuit Breaker

Description

The Doepke DLS6 i C16 is a single-pole miniature circuit breaker (MCB) engineered for reliable performance in industrial and commercial applications. It provides essential protection against both overload and short-circuit currents, ensuring the safety and integrity of your electrical installations. With its C-type tripping characteristic, it is suitable for general purpose loads with moderate inrush currents.

Specifications

• Manufacturer: Doepke
• Model: DLS6 i C16
• Part Number: 09916005
• Number of Poles: 1
• Rated Current: 16 A
• Tripping Characteristic: C-Curve
• Rated Voltage (AC): 230/400 V
• Rated Breaking Capacity: 10 kA according to IEC/EN 60898-1
• Energy Limiting Class: 3
• Mounting: DIN Rail

Label Info

• Brand: Doepke
• Model Code: DLS6 i
• Rating: C16 (~230/400V)
• Breaking Capacity: 10000

Application

This MCB is ideal for protecting lighting circuits, socket outlets, and control circuits in industrial facilities, commercial buildings, and switchgear assemblies where high breaking capacity is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of approximately 4.8 kg of CO2. This saving is comparable to the energy needed to drive a standard passenger car for 24 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'C' refers to the tripping characteristic of the circuit breaker. A C-curve MCB is designed to trip at 5 to 10 times its rated current (16A). This makes it suitable for applications with moderate inrush currents, such as lighting, standard socket outlets, and small motors.

The breaking capacity is 10,000 Amperes (10 kA). This is the maximum fault current the breaker can safely interrupt without being damaged. A 10 kA rating is high and indicates suitability for industrial and commercial environments where potential short-circuit currents can be substantial.

While technically possible, a 10 kA rated MCB is typically specified for industrial or commercial use. Residential installations often use MCBs with a 6 kA rating. It is crucial to use a breaker that matches the requirements of the specific electrical installation and local regulations.
