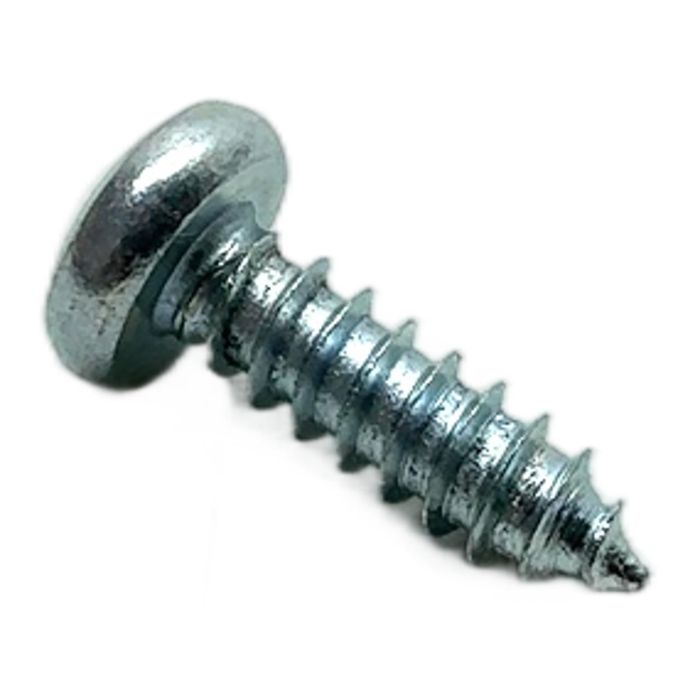

Box of 200 DIN 7981 C Pan Head Self-Tapping Screws

Description

This is a full box of 200 pan head self-tapping screws, manufactured to the DIN 7981 C standard. These screws are made from zinc-plated steel for corrosion resistance and feature a Phillips drive. With a diameter of 4.8mm and a length of 16mm, they are ideal for assemblies involving sheet metal, plastics, and other unthreaded materials. The 'C' designation indicates a pointed tip for easy starting. This product is also CR6 free, complying with modern environmental and safety standards. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Standard: DIN 7981 C (ISO 7049 equivalent)
• Head Type: Pan Head
• Drive: Phillips (Cross recess)
• Material: Steel
• Finish: Zinc-Plated (Verzinkt)
• Diameter: 4.8 mm
• Length: 16 mm
• Tip Style: Pointed (Form C)
• Quantity per Box: 200 pieces

Label Info

• Product Name: PLAATSCHROEF (Sheet Metal Screw)
• Standard: DIN 7981 C Verzinkt
• Environmental: CR6 free
• Dimensions: 4.8 x 16
• EAN: 8712675024282

Application

These screws are commonly used in automotive, electronics, HVAC, and general manufacturing for fastening components to thin-gauge sheet metal, plastic housings, and composite materials.

Country of Origin

The EAN code (871) indicates a product registered in The Netherlands. The specific country of manufacture for the screws is not specified on the packaging.

CO2 Impact

By choosing this existing box of screws, you contribute to a circular economy and help avoid 0.6 kg of CO2 emissions associated with the production of new steel. This saving is comparable to the emissions from driving a standard car for 3 kilometers.

Availability

This item is in stock and ready for immediate dispatch. The product is new, and while the box has been opened, the contents are unused.

FAQ

What does the 'C' in DIN 7981 C signify?

The 'C' in the DIN 7981 standard specifies that the screw has a cone point (spitze), which helps in starting the screw in materials without a pilot hole or with a smaller one.

The ideal pilot hole size depends on the material's thickness and hardness. For thin sheet steel (e.g., 1-2mm), a pilot hole of approximately 4.0mm to 4.2mm is generally recommended.

CR6 free indicates that the zinc plating process used for these screws does not contain Hexavalent Chromium (Chromium VI). This is an important environmental and health standard (compliant with RoHS directive), as CR6 is a known hazardous substance.
