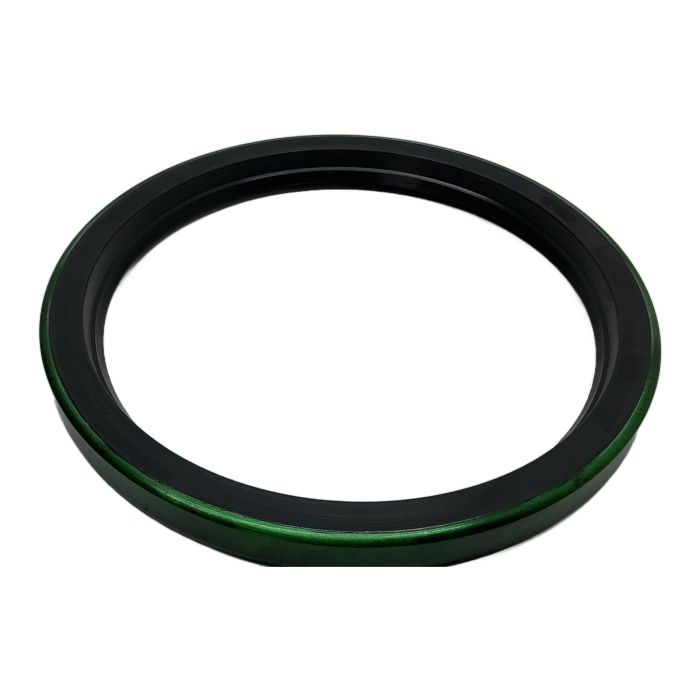

Dichtomatik DIN 3760-B FKM Oil Seal

Description

This is a high-performance radial shaft seal with dimensions 210x250x20mm, designed to the DIN 3760-B standard. The seal is constructed from FKM (fluoroelastomer), providing superior resistance to high temperatures, aggressive chemicals, and various oils and fuels. Its robust design with a spring-loaded sealing lip ensures reliable and long-lasting sealing performance in demanding industrial environments.

Specifications

• Inner Diameter: 210 mm
• Outer Diameter: 250 mm
• Width: 20 mm
• Material: FKM (Fluoroelastomer)
• Standard: DIN 3760-B
• Feature: Metal case, spring-loaded sealing lip

Label Info

• Type: OIL SEAL FKM
• Dimensions: 210x250x20mm
• Standard: DIN3760-B

Application

This FKM oil seal is ideal for use in heavy-duty applications where standard NBR seals would fail, including gearboxes, pumps, crankshafts, and hydraulic systems exposed to high temperatures and aggressive media.

Country of Origin

Germany

CO2 Impact

Choosing this product over a new one avoids the emission of approximately 10.0 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of FKM material for this oil seal?

The primary advantage of FKM (Fluoroelastomer) is its excellent thermal and chemical resistance. It can operate at much higher temperatures (up to 200 deg C) and withstand aggressive fluids, oils, and chemicals that would degrade standard materials like NBR.

What does the 'B' in DIN 3760-B signify in the design of this seal?

The 'B' form in the DIN 3760 standard specifies a design with a metal outer casing that is covered with rubber on its outside diameter. It also features a spring-loaded sealing lip for effective sealing pressure on the shaft.

What are the typical operating temperature limits for an FKM oil seal like this?

Generally, FKM seals can operate continuously in a temperature range from -20 deg C to +200 deg C (-4 deg F to +392 deg F), with short-term capabilities to handle even higher temperatures, depending on the specific media.
