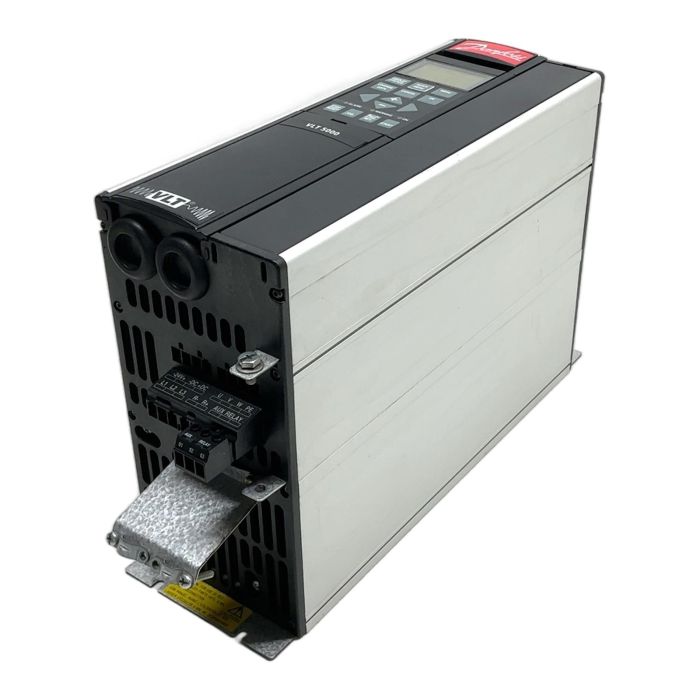

Danfoss VLT 5006 5.5kW Frequency Inverter

Description

The Danfoss VLT 5006 (175Z0563) is a high-performance frequency inverter from the reliable VLT 5000 series. Designed for controlling three-phase AC motors up to 5.5 kW, it is perfectly suited for a variety of industrial tasks. This model features an integrated PROFIBUS communication interface, allowing for advanced control and monitoring within a larger automation system. Its robust design and user-friendly interface make it a valuable component for new installations or as a spare part for existing machinery.

Specifications

• Manufacturer: Danfoss
• Series: VLT 5000
• Model: VLT 5006
• Power Rating: 5.5 kW (7.5 HP)
• Input Voltage: 3 x 380-500V AC, 50/60Hz
• Output Current: 10 A
• Enclosure Rating: IP20
• Communication: PROFIBUS DP
• Control Panel: Included Local Control Panel (LCP)

Label Info

• Type: VLT5006PT5B20STR3DLF10A00C0
• Part Number (C/N): 175Z0563
• Serial Number (S/N): 039536G133
• Input: 3x380-500V 50/60Hz 9.1A/8.3A
• Output: 3x0-Uin 0-1000Hz 10A/8.2A 7.6kVA
• Max Ambient Temp: 45 deg C

Application

This versatile drive is ideal for applications such as pumps, fans, compressors, conveyors, and other general-purpose motor control scenarios where reliability and precise speed control are required.

Country of Origin

Made in Denmark.

CO2 Impact

By purchasing this pre-owned unit, you are preventing the emission of approximately 440 kg of CO2. This saving is equivalent to the emissions from driving a car for 2200 kilometers, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The VLT 5006 is part of the obsolete VLT 5000 series. While it can replace other drives with similar power (5.5kW/7.5HP) and voltage ratings, parameters will need to be re-programmed. The modern Danfoss equivalent is the VLT FC 302 series, which requires engineering review for replacement.

Yes, the detailed type code for this model confirms it includes a built-in brake chopper. You would need to connect an external braking resistor to the designated terminals to utilize this function for dynamic braking applications.

This drive is equipped with a PROFIBUS DP V1 communication module. To integrate it into a PROFIBUS network, you will need the appropriate GSD file for the VLT 5000 series and a standard PROFIBUS DP connector. The GSD file allows your PLC or master controller to recognize the drive and its parameters.
