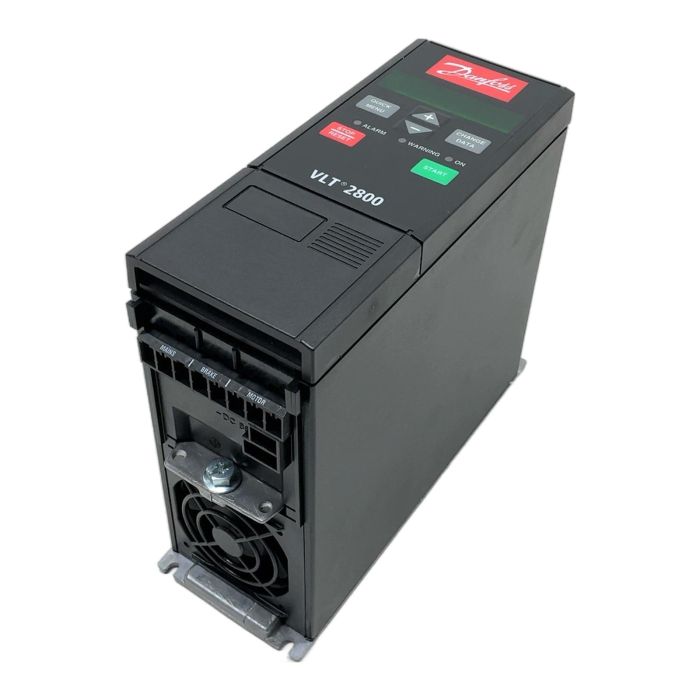

Danfoss VLT 2815 Frequency Inverter

Description

The Danfoss VLT 2815, part number 195N1040, is a compact and efficient frequency inverter designed for precise control of AC motors. This model is rated for 1.5 kW and operates on a 3-phase input voltage of 380-480V. As part of the reliable VLT 2800 series, it's a popular choice for various industrial applications, including pumps, fans, and conveyors. This unit comes as New Old Stock, providing a reliable spare part for existing installations.

Specifications

• Manufacturer: Danfoss
• Series: VLT 2800
• Model: VLT2815PT4B20SBR1DBF00A00
• Part Number: 195N1040
• Power Rating: 1.5 kW (2.0 HP)
• Input Voltage: 3 x 380-480V AC, 50/60Hz
• Input Current: 3.2 A
• Output Voltage: 3 x 0-Uin
• Output Current: 3.7 A
• Output Frequency: 0-1000 Hz
• Enclosure Rating: IP20
• Features: Integrated Brake Chopper and RFI Filter

Label Info

• T/C: VLT2815PT4B20SBR1DBF00A00
• P/N: 195N1040
• S/N: 022007G290
• SW: V 2.20

Application

This frequency inverter is ideal for applications requiring variable speed control in industrial environments. Common uses include manufacturing lines, HVAC systems, material handling equipment, and textile machinery.

Country of Origin

Made in Denmark.

CO2 Impact

Opting for this unused VLT 2815 drive prevents the CO2 emissions associated with manufacturing a new unit, saving approximately 100 kg of CO2. This is equivalent to the emissions of a typical car driving 500 kilometers.

Availability

This is an obsolete item, available as New Old Stock. Limited quantity available. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Is this VLT 2815 drive compatible with Profibus communication?

Answer: The model number VLT2815PT4B20SBR1DBF00A00 does not indicate a factory-installed Profibus option. However, the VLT 2800 series could be fitted with an optional Profibus DP fieldbus module (VLT 2800 Profibus Option MCA 101). Compatibility would depend on installing this separate module.

What is the significance of the SW V 2.20 firmware?

Answer: Firmware version 2.20 is one of the later releases for the VLT 2800 series. It contains specific parameter sets and performance characteristics. When replacing an older drive, it is important to ensure parameter compatibility or to reprogram the new drive from scratch to match the application's requirements.

Since this is an IP20 rated drive, what are the installation requirements regarding cabinet ventilation and spacing?

Answer: An IP20 rating means the drive is protected against solid objects larger than 12.5mm but has no protection against liquids. It must be installed in a clean, dry environment, typically within a control cabinet. Danfoss recommends specific minimum clearances above and below the unit for proper airflow and cooling, and side-by-side mounting is often possible.
