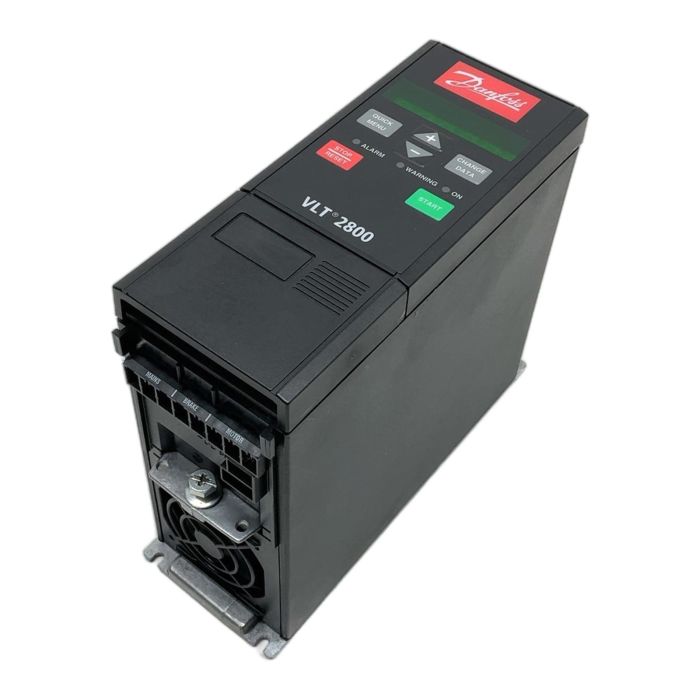

Danfoss VLT 2811 Frequency Inverter

Description

The Danfoss VLT 2811, part number 195N1028, is a highly reliable frequency inverter designed for controlling three-phase AC motors up to 1.1 kW. Part of the well-regarded VLT 2800 series, this drive is known for its compact design, easy setup, and robust performance in general-purpose applications. While this model is obsolete, it serves as a critical spare part for maintaining the operational integrity of existing systems, avoiding costly upgrades and reprogramming. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Danfoss
• Series: VLT 2800
• Model: VLT2811
• Part Number: 195N1028
• Power Rating: 1.1 kW / 1.5 HP
• Input Voltage: 3 x 380-480 VAC, 50/60Hz
• Input Current: 2.6 A
• Output Voltage: 3 x 0-Uin
• Output Current: 3.0 A
• Output Frequency: 0-1000 Hz
• Enclosure Rating: IP20
• Max. Ambient Temperature: 45 deg C

Label Info

• Type Code: VLT2811PT4B20SBR1DBF00A00
• P/N: 195N1028
• S/N: 020607G400

Application

This frequency inverter is suitable for a variety of applications including pumps, fans, conveyors, and other machinery requiring variable speed motor control.

Country of Origin

Made in Denmark.

CO2 Impact

Opting for this pre-owned unit prevents the emission of approximately 100 kg of CO2, which is comparable to the savings from not driving a car for 500 kilometers.

Availability

This item is a tested, used product. Available for immediate dispatch.

FAQ

The Danfoss VLT 2800 series is officially declared 'Obsolete' by the manufacturer. It has been succeeded by newer series like the VLT Micro Drive FC 51.

Yes, if the part number (195N1028) and type code match your existing unit, it can be used as a direct replacement. It is crucial to upload the parameters from the old drive or re-commission the new drive according to the application's requirements.

You should always perform an Automatic Motor Adaptation (AMA) via the control panel. Additionally, verify motor data parameters such as motor voltage, frequency, current, and nominal speed. Also, set the acceleration/deceleration ramps and speed limits to match your application's needs.
