DANFOSS VLT 5004 175Z0052
In stock
Backorder allowed
Out of stock
Description / DANFOSS VLT 5004 175Z0052
Danfoss VLT 5004 2.2kW Frequency Converter
Description
The Danfoss VLT 5004, part number 175Z0052, is a high-performance variable speed drive designed for controlling AC motors. This model from the reliable VLT 5000 series offers a power rating of 2.2 kW and operates on a 3-phase 380-500V power supply. It is an excellent solution for applications requiring precise speed and torque control. This unit is an obsolete but highly sought-after spare part for maintaining existing machinery.
Specifications
- Manufacturer: Danfoss
- Series: VLT 5000
- Type: VLT 5004
- Part Number: 175Z0052
- Power Rating: 2.2 kW (3.0 HP)
- Input Voltage: 3 x 380-500V AC, 50/60Hz
- Input Current: 5.3A
- Output Current: 5.6A
- Output Frequency: 0-1000 Hz
- Apparent Power: 4.3 kVA
- Protection Rating: IP20
Label Info
- VLT TYPE 5004 175Z0052
- 018209G077
- IN: 3x380-500V 50/60Hz, 5.3A
- OUT: 3x0-Uin 0-1000Hz, 5.6A 4.3kVA
- IP20/CHASSIS: AMBIENT MAX.45deg.C/113deg.F
Application
This frequency converter is suitable for a wide variety of industrial applications, including pumps, fans, conveyors, and other machinery where variable motor speed control is essential for process optimization and energy savings.
Country of Origin
This product is made in Denmark.
CO2 Impact
By purchasing this pre-owned item, you are helping to avoid the production of a new one, which saves an estimated 240 kg of CO2. This is a sustainable choice for your operations.
Availability
This is an obsolete item. Availability is limited. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question?
Is the Local Control Panel (LCP) included with this VLT 5004 drive?
Answer

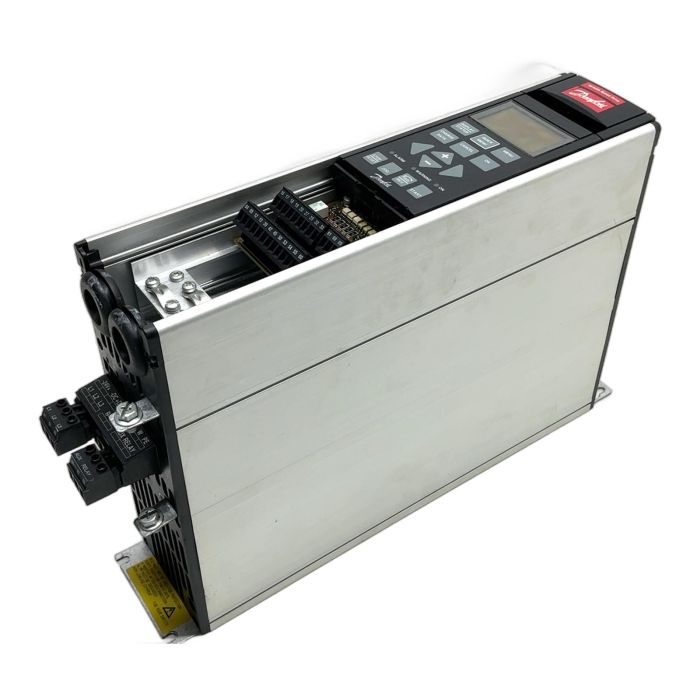

Yes, as shown in the product images, the graphical Local Control Panel (LCP) with display and keypad is included and attached to the drive.
Question?
Can this VLT 5000 series drive be programmed using the same software as the modern FC 302 series?
Answer
No, the VLT 5000 series uses the older VLT Software MCT 10. The modern VLT Motion Control Tool MCT 10 is designed for newer series like the FC 302 and is not backward compatible with the VLT 5000.
Question?
What is the maximum motor cable length recommended for this 175Z0052 drive without additional filters?
Answer
For the Danfoss VLT 5000 series, the recommended maximum motor cable length is typically 50 meters for screened/armored cables and 100 meters for unscreened cables to maintain EMC compliance and prevent motor bearing issues. For longer distances, output filters may be required.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Last Update: Friday, March 13, 2026
More Information
| Item Number | VLT 5004 175Z0052 |
|---|---|
| Brands | Danfoss |
| HS Code | 85044085 |
| EAN | 0 |
| HS Description | Frequency converter |
| Manufacturer | Danfoss |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
