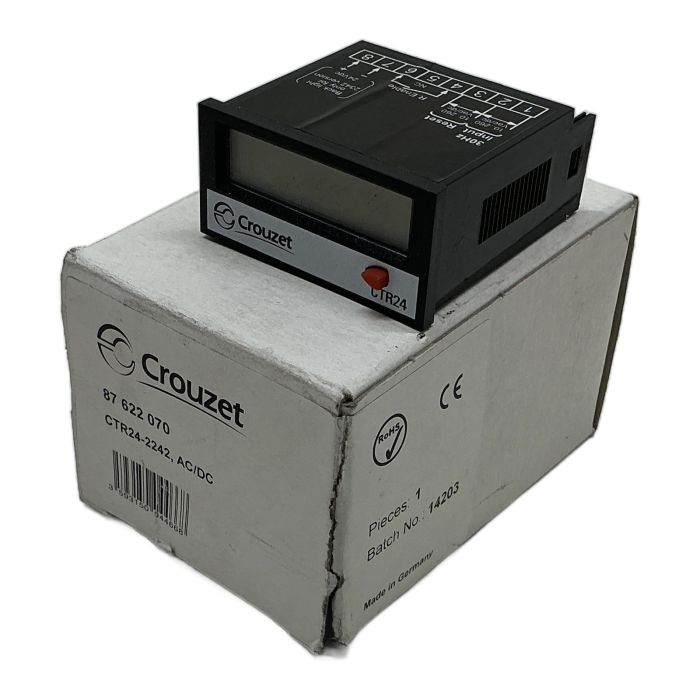

Crouzet Multifunction Counter/Timer CTR24-2242

Description

The Crouzet CTR24-2242 is a high-precision, panel-mounted multifunction instrument designed for demanding industrial environments. This single device can function as a timer, counter, tachometer, or chronometer, providing exceptional flexibility for process control and automation tasks. It features a broad supply voltage range of 24 to 240V AC/DC and accepts both NPN and PNP inputs, ensuring seamless integration into existing systems. The unit is equipped with a clear 6-digit LCD screen for easy monitoring and a relay output for control actions.

Specifications

• Manufacturer: Crouzet
• Model: CTR24-2242
• Part Number: 87 622 070
• Supply Voltage: 24 to 240V AC/DC
• Display: 6-digit LCD
• Dimensions: 24 x 48 mm
• Input Type: NPN / PNP compatible
• Functions: Timer, Counter, Tachometer, Chronometer
• Output: 1 Relay

Label Info

• Batch No: 14203
• EAN: 4012074044668

Application

Ideal for applications such as production counting, process timing, speed measurement (tachometer), and event duration monitoring in manufacturing, packaging, and material handling systems.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid the production of a new one, saving an estimated 3.0 kg of CO2. This is comparable to the emissions of a 15 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The device supports a wide supply voltage range from 24V to 240V, accommodating both AC and DC power sources, which makes it highly versatile for various industrial control panels.

Yes, the CTR24-2242 is designed with flexible inputs that are compatible with both NPN (sinking) and PNP (sourcing) type sensors, allowing for easy integration without the need for additional signal converters.

The unit can be reset manually via the red button on the front panel. Additionally, it features terminals for an external reset input, allowing for remote or automated reset functionality within a control circuit.
