Creon TG01 Flexible PTFE Hose Assembly

Description

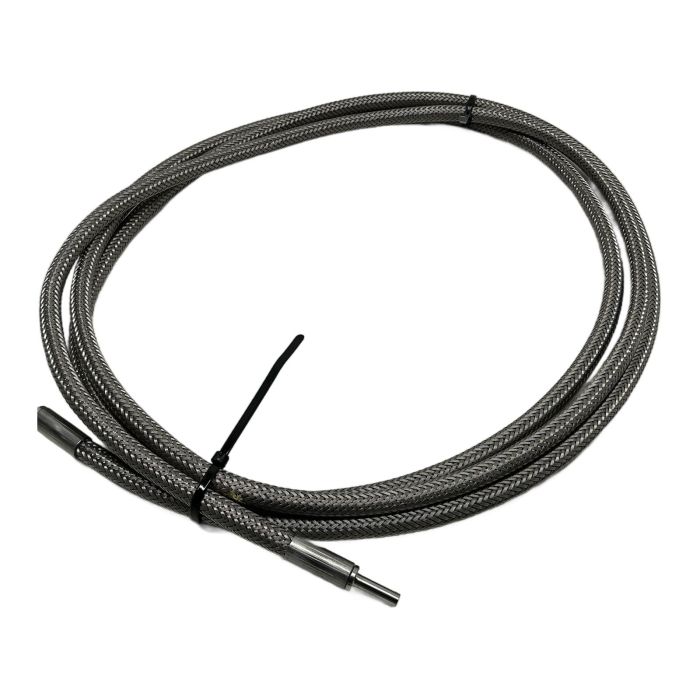

This is a new-old-stock flexible hose assembly, model TG01, manufactured by Creon. It features a corrugated PTFE core, providing excellent chemical resistance and flexibility. The hose is reinforced with a 304 stainless steel braiding and an internal spiral for enhanced durability and pressure handling. This assembly is terminated with 6mm outer diameter AISI 316L stainless steel pipe ends, suitable for various industrial connections.

Specifications

• Manufacturer: Creon
• Model: TG01
• Part Number: 85100562
• Inner Diameter: 1/4 inch
• Length: 3500 mm
• Connections: 6 mm OD pipe ends
• Hose Material: PTFE (Polytetrafluoroethylene)
• Braiding Material: 304 Stainless Steel
• Fitting Material: AISI 316L Stainless Steel
• Test Pressure: 7 bar (hydraulic)

Label Info

• Creon Job Number: 3002503
• Conformity: DIN 50049 2.1
• Date of Certification: 20/07/2010

Application

Designed for demanding fluid transfer applications in industries such as chemical processing, pharmaceuticals, food and beverage, and general industrial hydraulics where high purity and chemical inertness are required.

Country of Origin

Belgium

CO2 Impact

By purchasing this pre-owned component, you contribute to the circular economy and help avoid the emission of approximately 3.0 kg of CO2 associated with the production of a new part.

Availability

This is a New Old Stock (NOS) item from 2010. It is unused and comes with its original certificate of conformity and test certificate. Order now from PLC2Day for expert support and fast delivery.

FAQ

PTFE is known for its exceptional chemical resistance to a wide range of industrial chemicals, acids, and bases. However, it's always recommended to verify compatibility with your specific medium, temperature, and pressure requirements.

These are plain pipe ends (stubs) designed to be used with compression fittings or swagelok-type tube fittings, which create a seal by compressing a ferrule onto the pipe.

The documentation mentions an RVS (stainless steel) spiral between the PTFE and the braiding. This internal support typically improves vacuum resistance and prevents the hose from collapsing under negative pressure. Please consult manufacturer specifications for the exact vacuum rating.
